ECUHELP KT200 is tested to read and write Siemens SID803A Volvo V50 2.0D 2007 Pinout Mode, checksum by tool.

Test Information
Vehicle: Volvo V50 2.0D (2007)
ECU: Siemens SID803A
Programming Mode: Pinout Mode
Tool: ECUHELP KT200 ECU Programmer

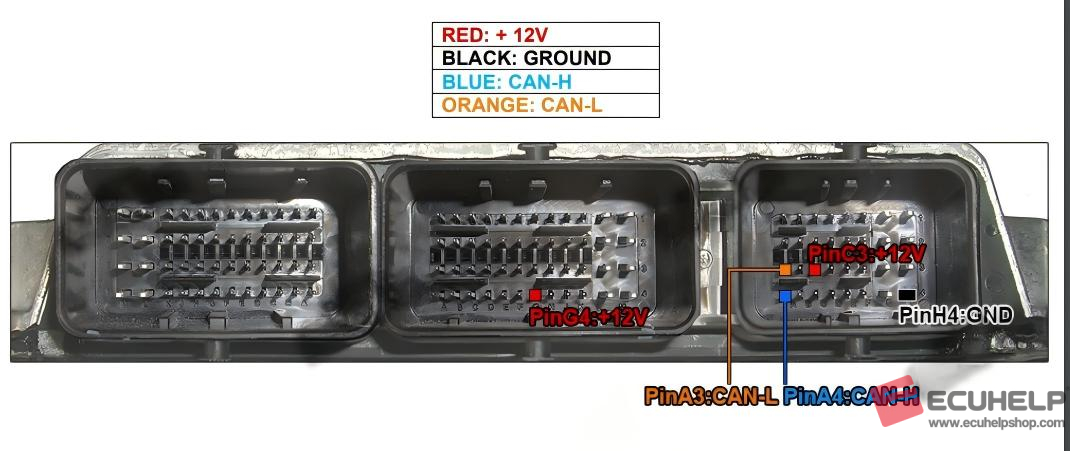

To connect to the control unit use:
– Multifunction cable

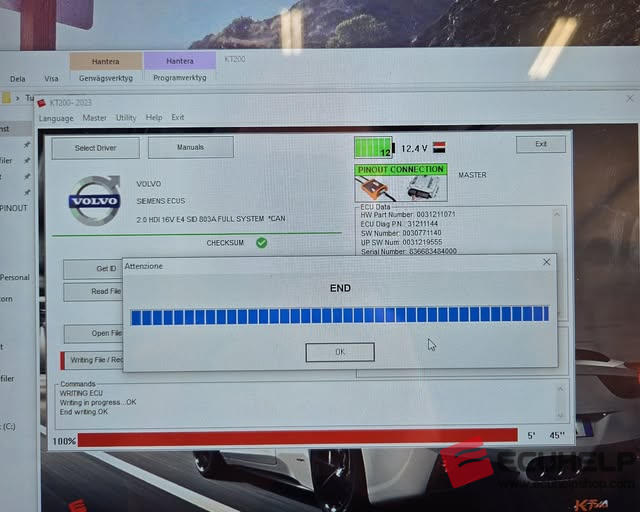

After connecting the ECU using the multifunction cable and selecting the correct protocol, the KT200 performs the process quickly and efficiently.
read 4min and write 5min

Performance Overview

The ECUHELP KT200 continues to demonstrate strong compatibility with Siemens ECUs used in Volvo vehicles. With automatic checksum correction and fast processing speeds, users can complete ECU backup, tuning, and modification tasks more efficiently.

For technicians working on Volvo V50 2.0D Siemens SID803A, KT200 provides a reliable Pinout Mode solution with straightforward setup and proven results.
