ECUHELP KT200 Read Write Volvo V60 D2 2011 SID807evo Boot Mode

Byadmin

Sep 10, 2026 ECUHELP KT200 Reviews, KT200II Test Reports

ECUHELP KT200 ECU Programmer Offline Workstation is confirmed to read and write Volvo V60 D2 2011 SID807evo Boot Mode.

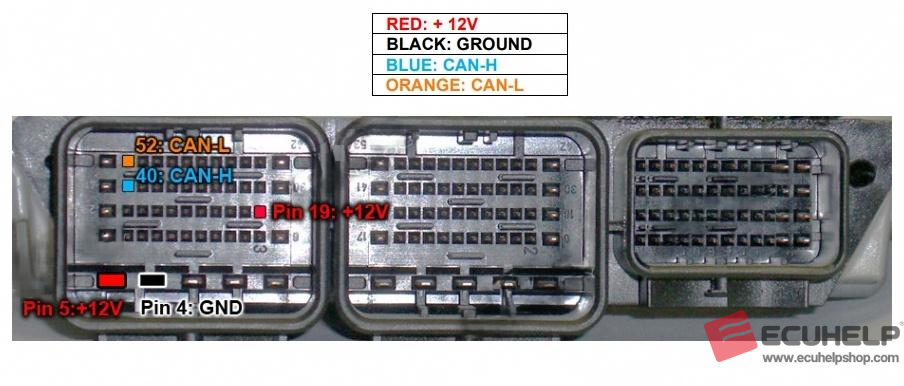

Pinout for reference:
To connect to the control unit use:
– Multifunction cable
ECUHELP KT200 Read Write Volvo V60 D2 2011 SID807evo Boot Mode-01

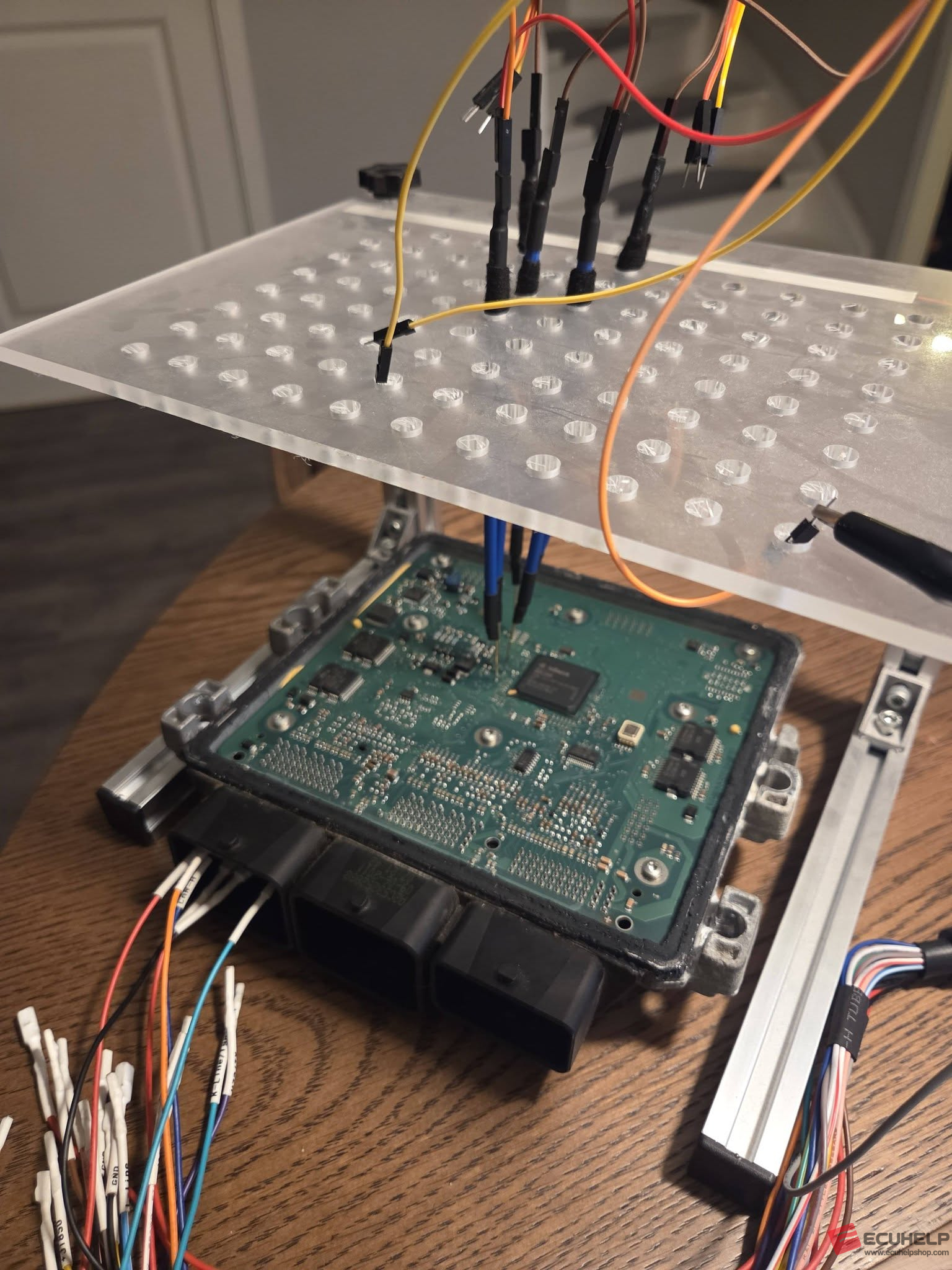

ECUHELP KT200 Read Write Volvo V60 D2 2011 SID807evo Boot Mode-02

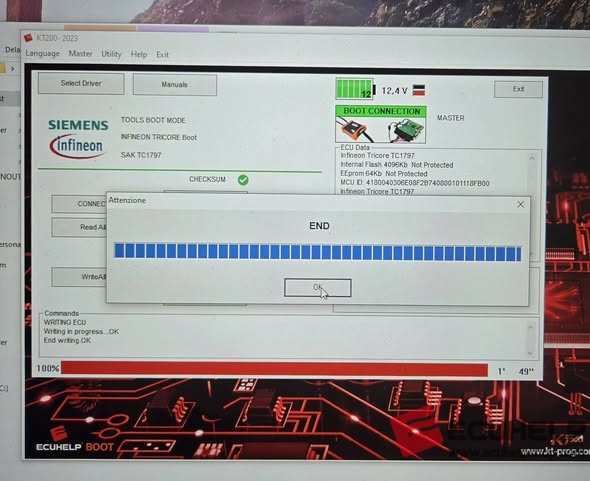

Attach one more image of writing SID807evo Boot Mode successfully with KT200 Offline:
ECUHELP KT200 Read Write Volvo V60 D2 2011 SID807evo Boot Mode-03

To be informed:

KT200II is able to read and write SID807evo OBD mode, please refer to this post:
https://www.ecuhelp.org/ecuhelp-kt200ii-reads-writes-peugeot-508-sid807evo-via-obd/

And this Youtube Video:
