TagFlash ECU Tool is confirmed to read and write MG1CS011 (20-06-2020 ECU) on Bench.

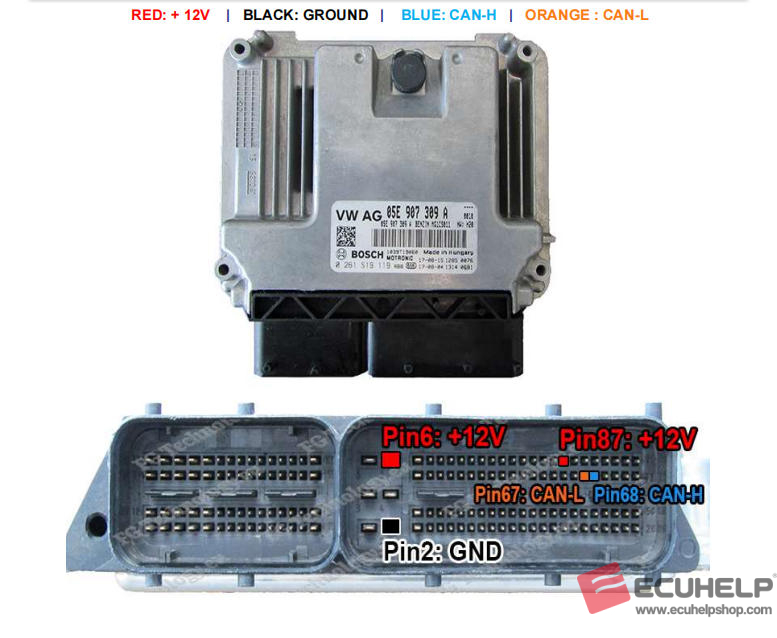

Firstly, please refer to the TagFlash wiring diagram of VAG GROUP BOSCH MG1CS011 (Gasoline):
INFO :

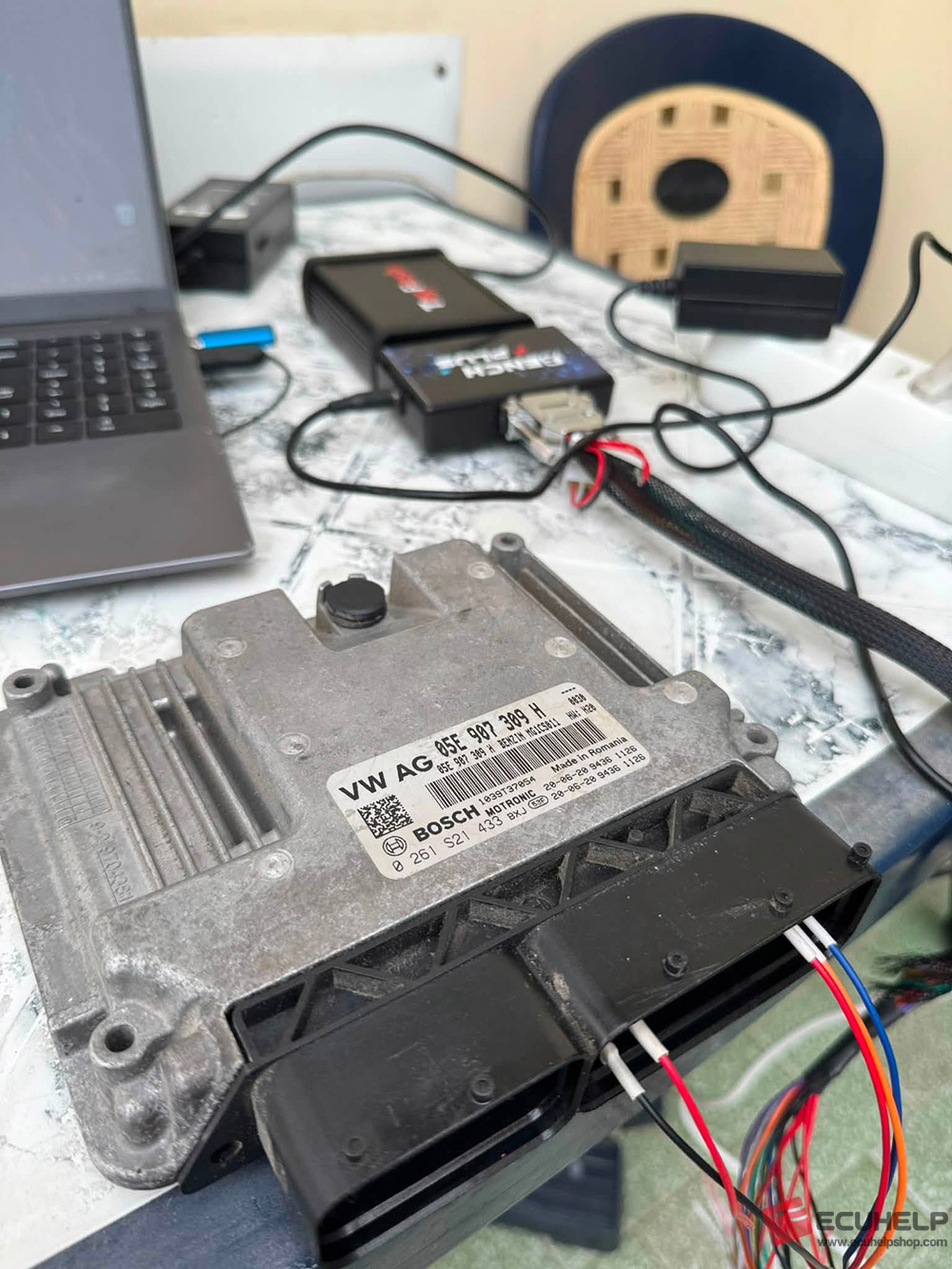

Set the tool as shown in the photo and connect the
following pinout with the Tricore Cable.
DRIVER: Tool Boot mode → MD1/MD1 Benchmode → Aurix TC2xxTP* / Freescale SPC5777
MICRO: Freescale SPC5777
