ECUHELP KT200II ECU Programmer is confirmed to read and write BMW 2016 520D 190hp EDC17C50 on Bench.

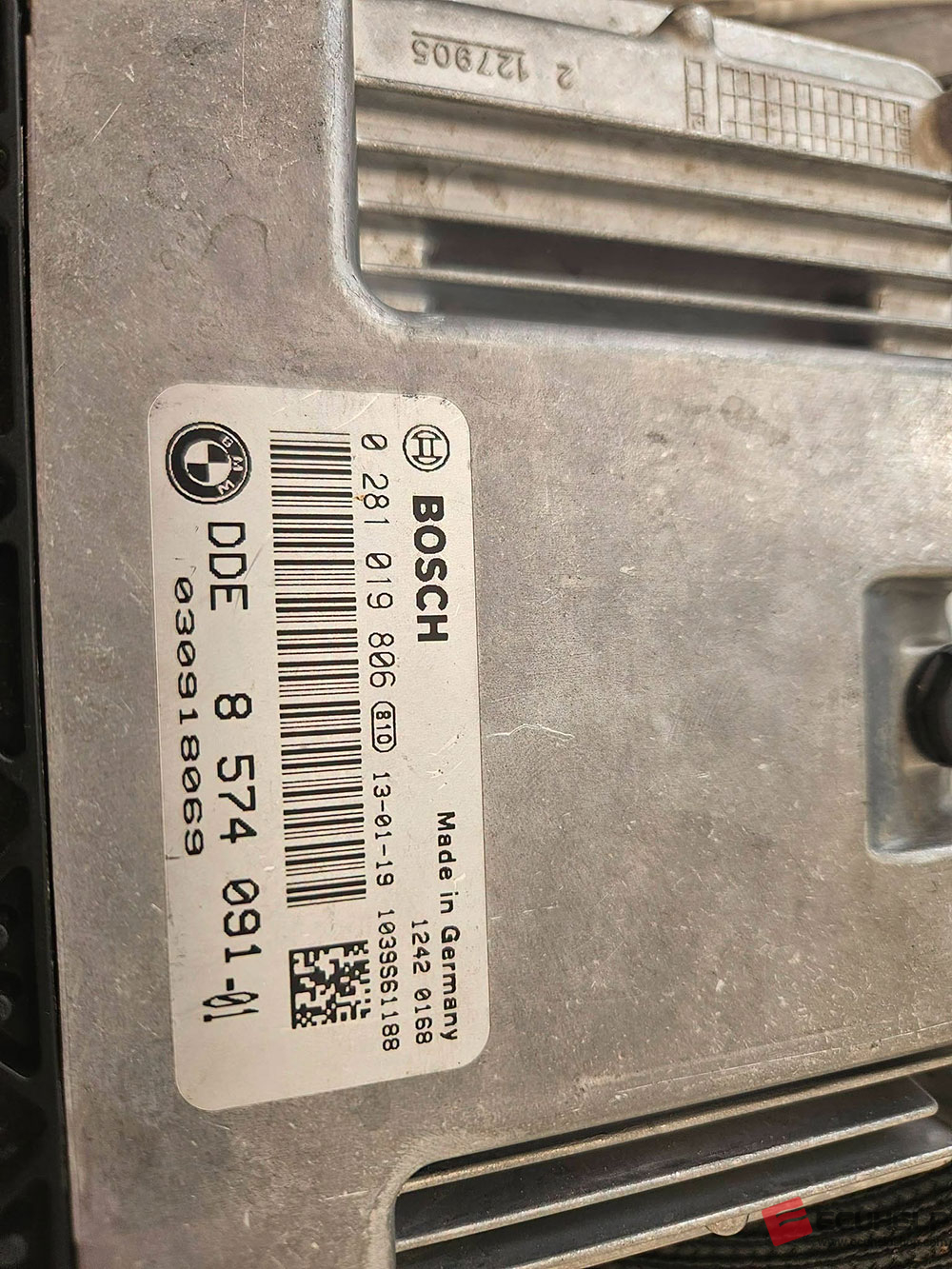

Firstly, please look at the ECU outlook of EDC17C50:

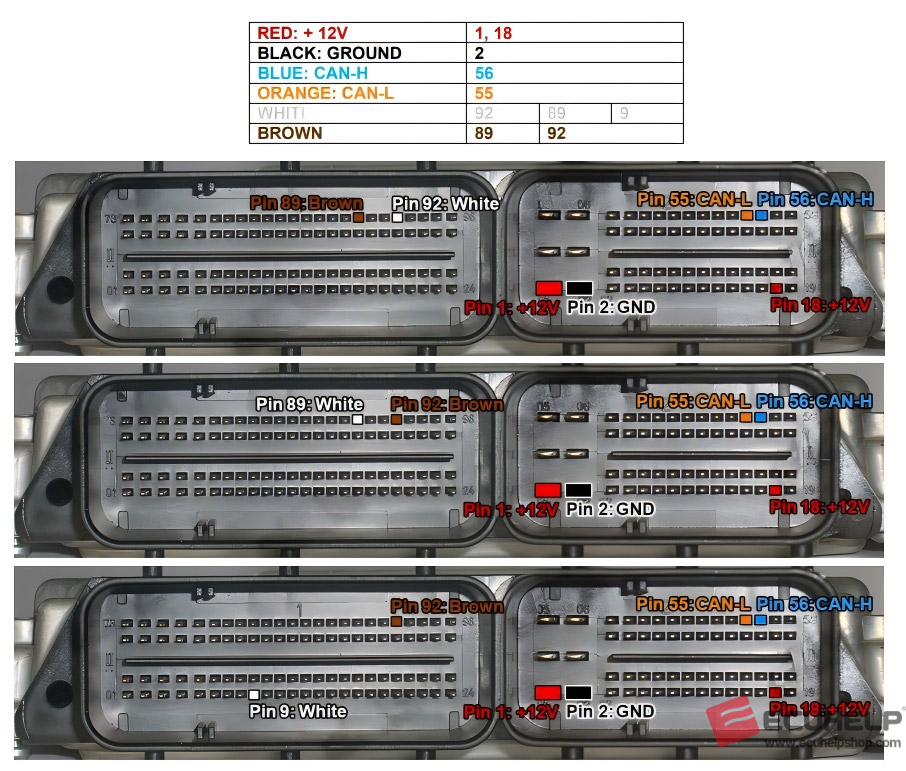

Then, please refer to the KT200II wiring diagram of BOSCH EDC17 C50 / C41 Vers. 2 – [ 1797 ] – BMW, Mini [Diesel]:

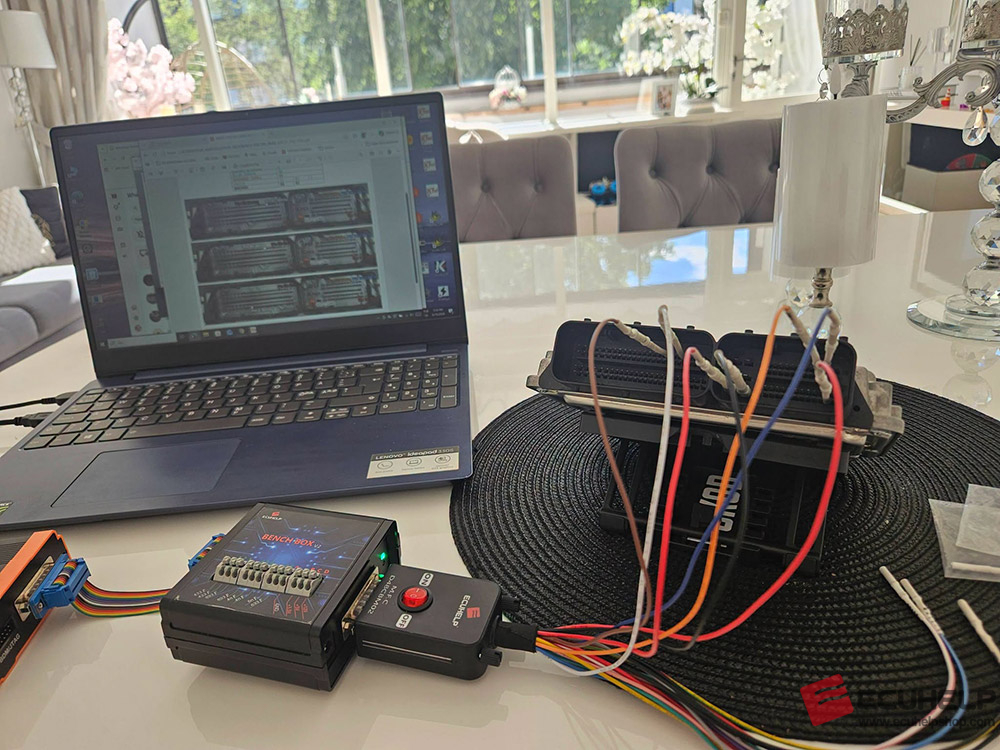

Connect the multi-function cable as follows. For this ECU there are 3 different types of hardware versions, try the following 3 combinations in series. The ECU will not suffer any damage during connection tests.

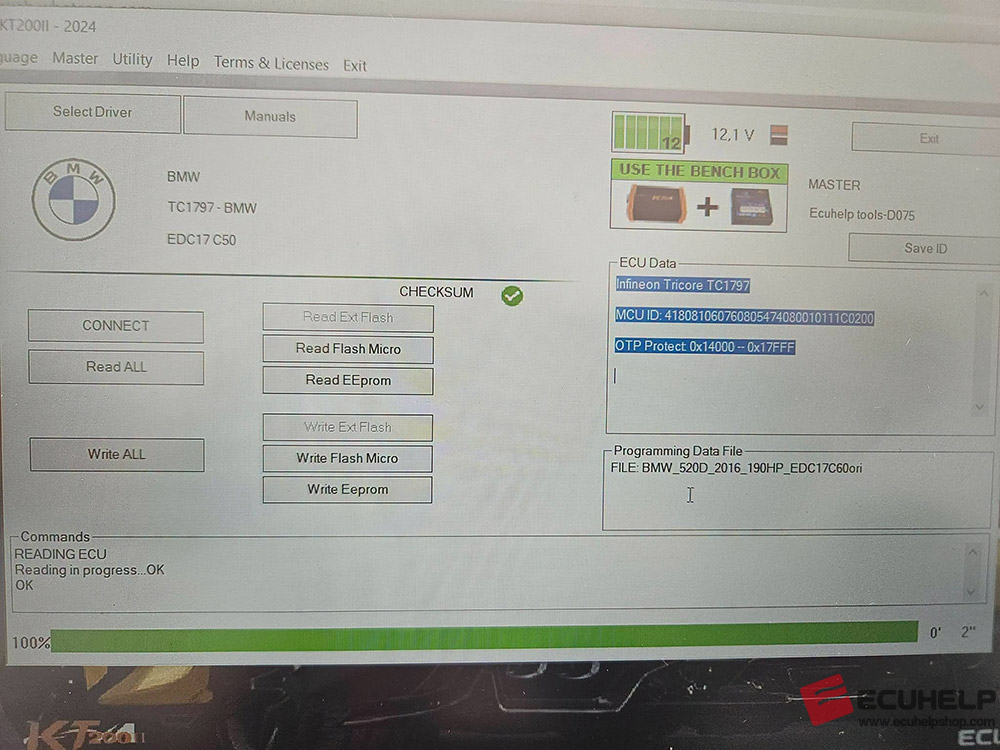

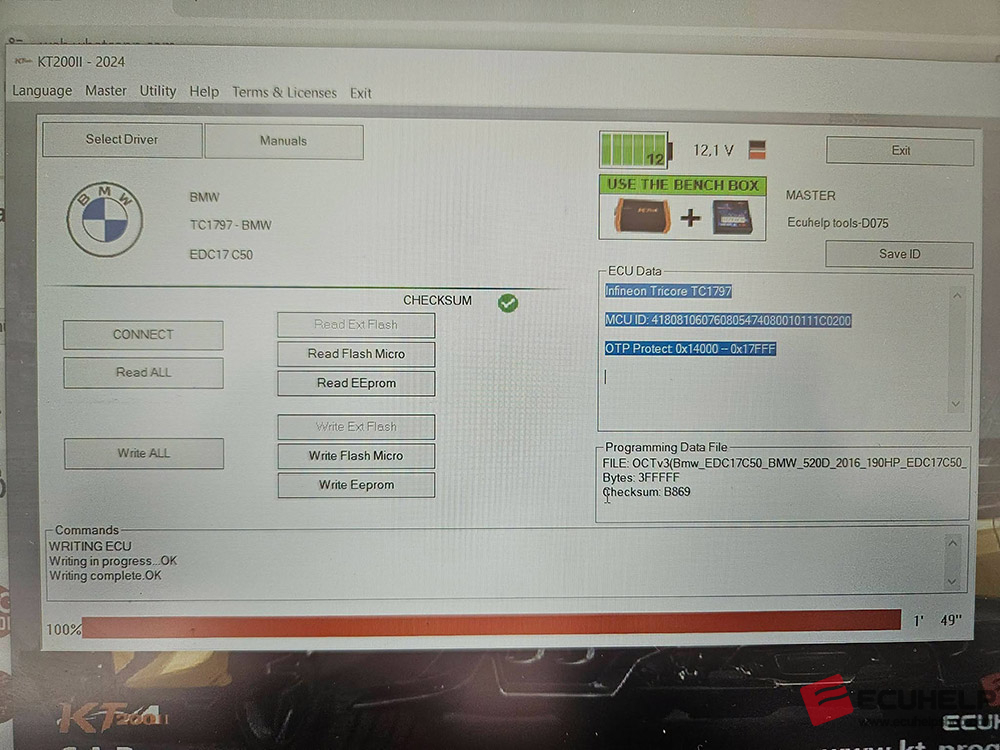

To read and write use the following driver of KT200II:
→ BENCH TRICORE
→ BMW
→ TC1797 – BMW
→ EDC17 C50
