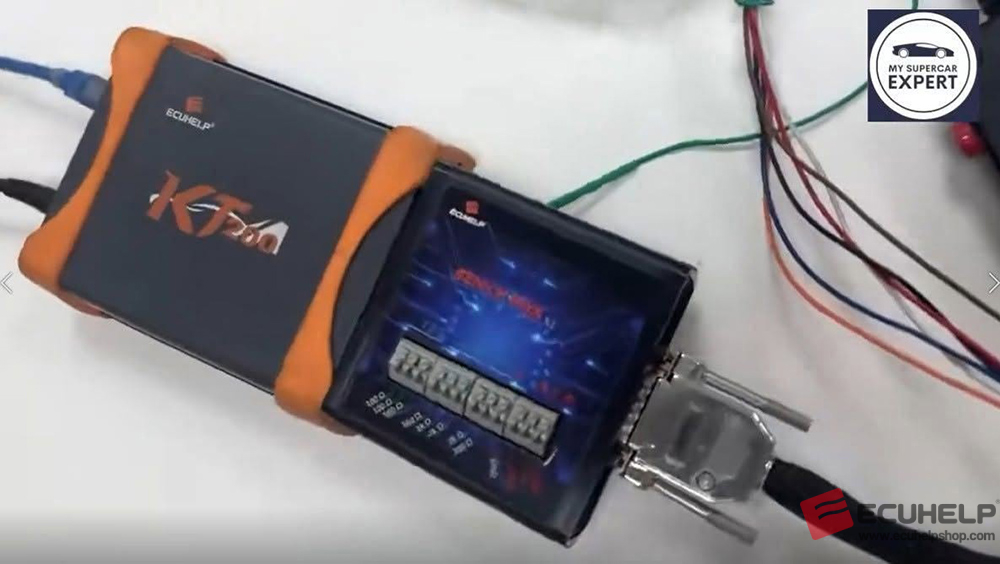

ECUHELP KT200II ECU Programmer is tested to read and write LandRover MED17.8.31 on Bench successfully.

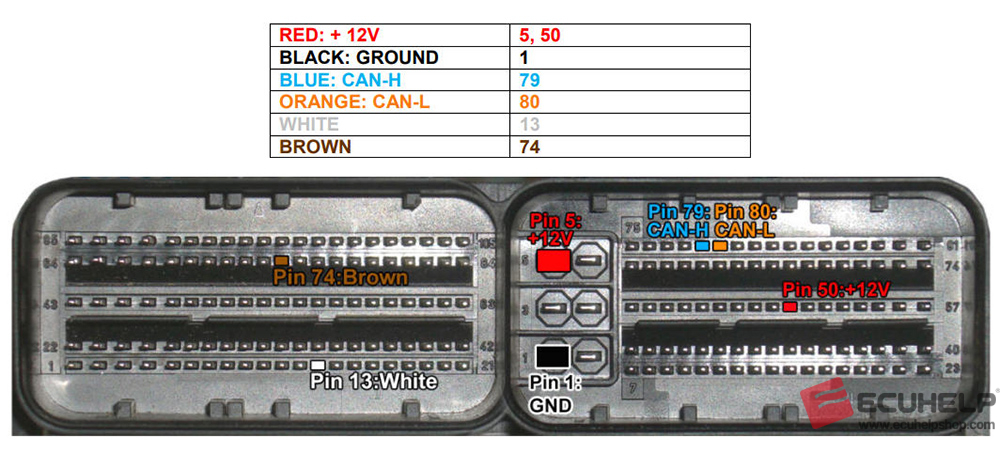

KT200II wiring diagram of BOSCH MED17.8.31 [ 1797 ] – Land Rover [Gasoline]:
Connect the multifunction cable as follows:

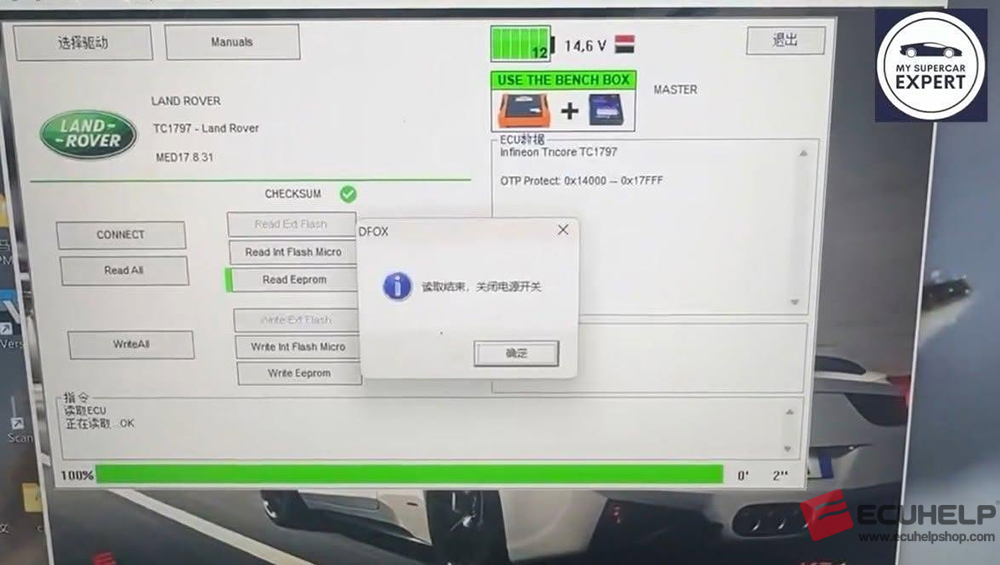

To read and write use the following driver of KT200II:
→ BENCH TRICORE
→ LAND ROVER
→ TC1797 – LAND ROVER
→ MED17.8.3
