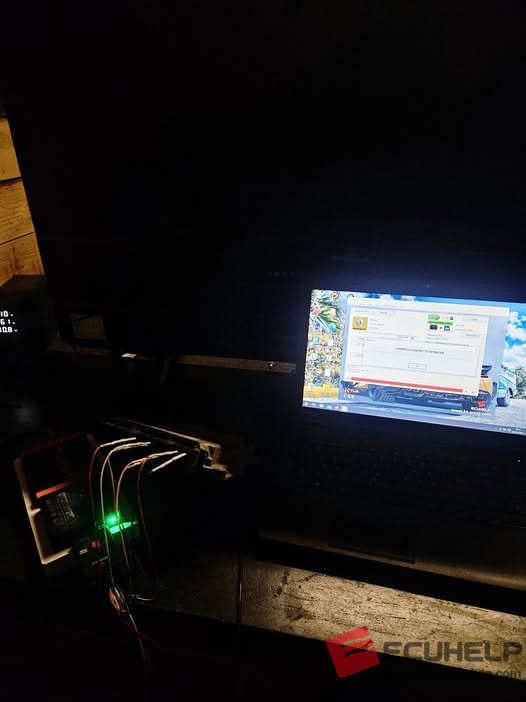

ECUHELP KT200II ECU Programmer is tested to Bench mode read and write Renault Trafic 2 (2014) EDC17C42.

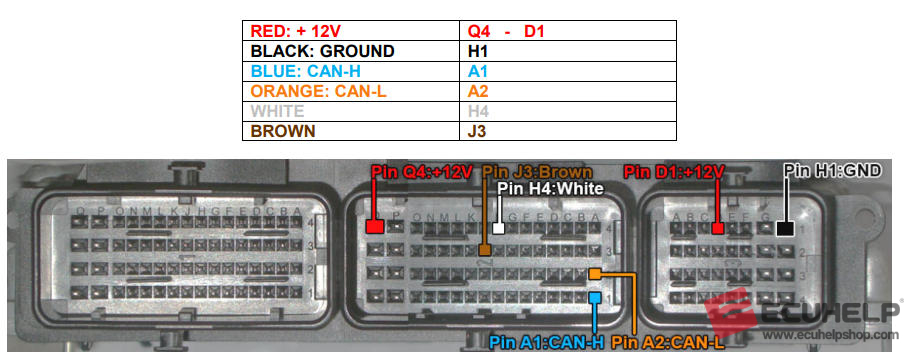

KT200II wiring diagram of BOSCH EDC17 C42 [ 1767 ] – Renault, Nissan [Diesel]:
Connect the multifunction cable as follows:
To read and write use the following driver of KT200II:
→ BENCH TRICORE
→ RENAUT or NISSAN
→ TC1767 – RENAULT or NISSAN
→ EDC17 C42
