ECUHELP KT200II is confirmed to read and write Peugeot 607 2.7HDI 2006 SID201 Jtag Mode.

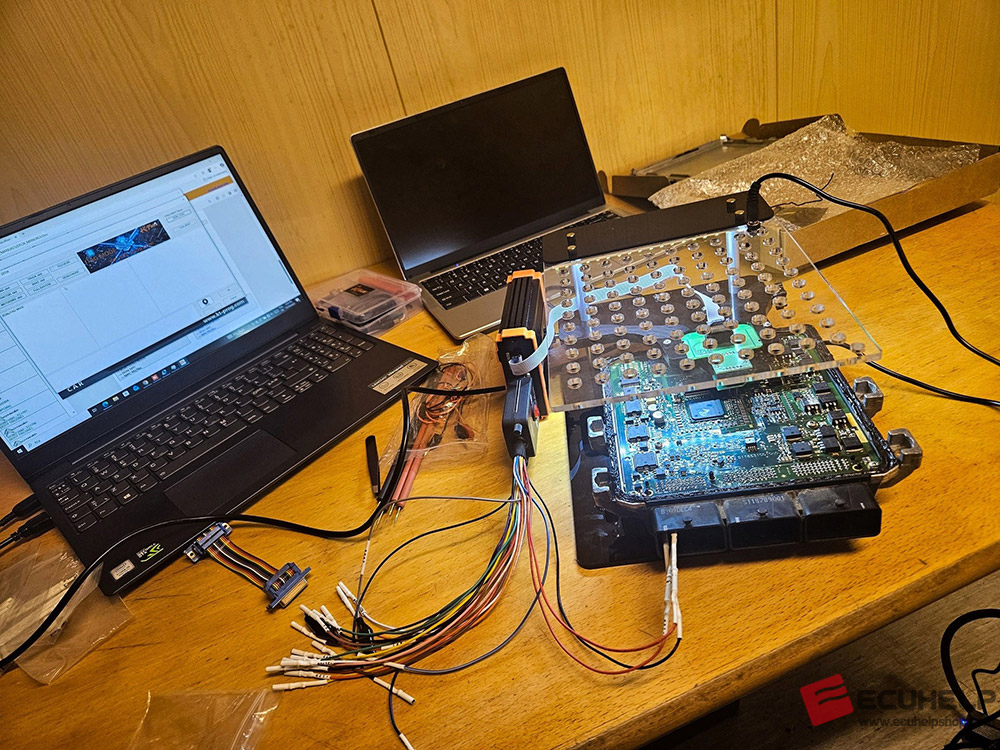

KT200II wiring diagram of Siemens SID201:
Kit to use:
– Multifunction cable
– Siemens/Marelli adapter
– Grey flat cable
– Connectors dip/sip

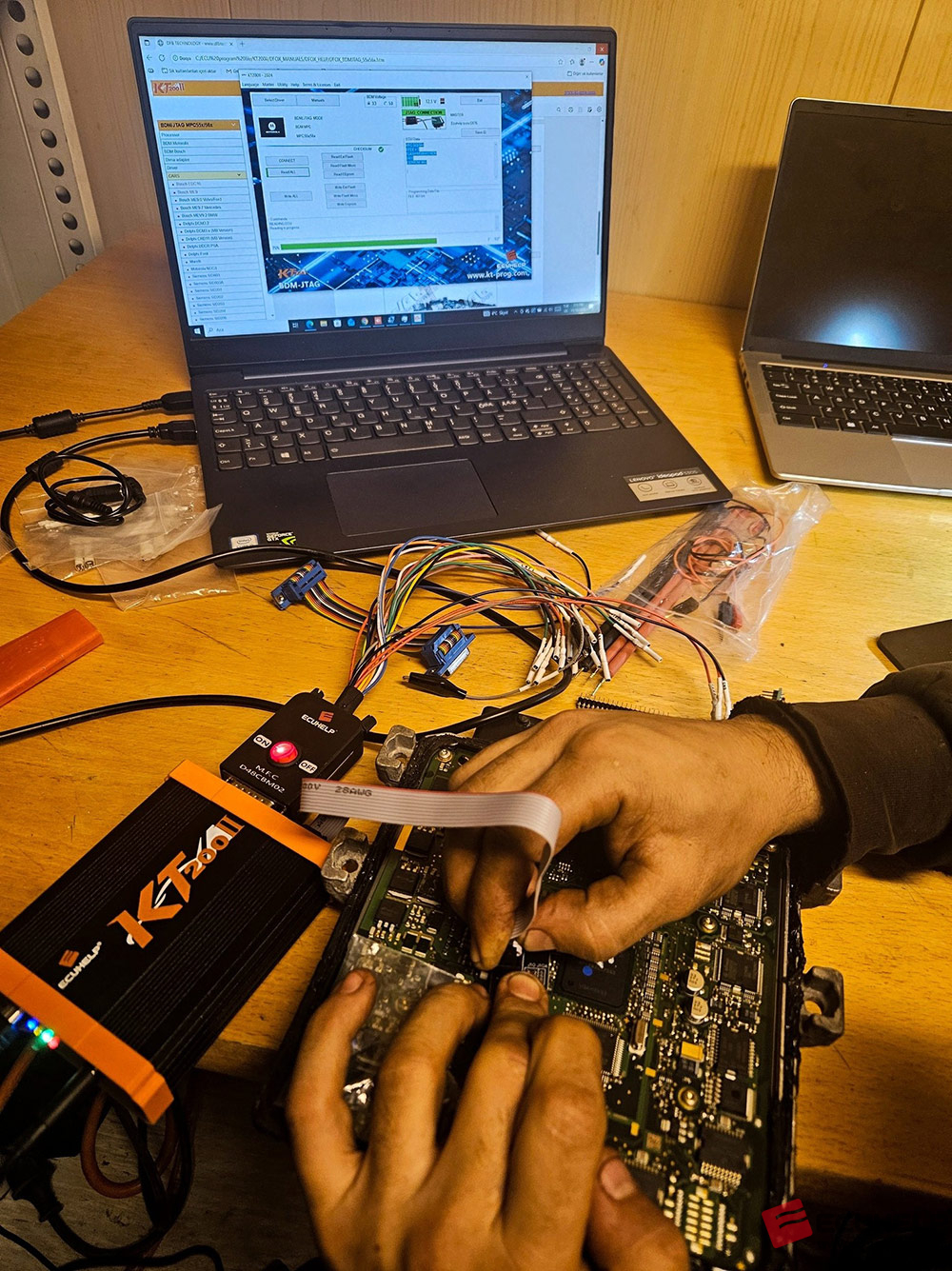

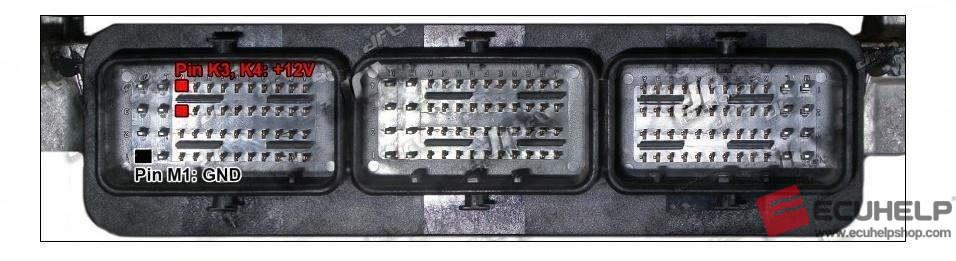

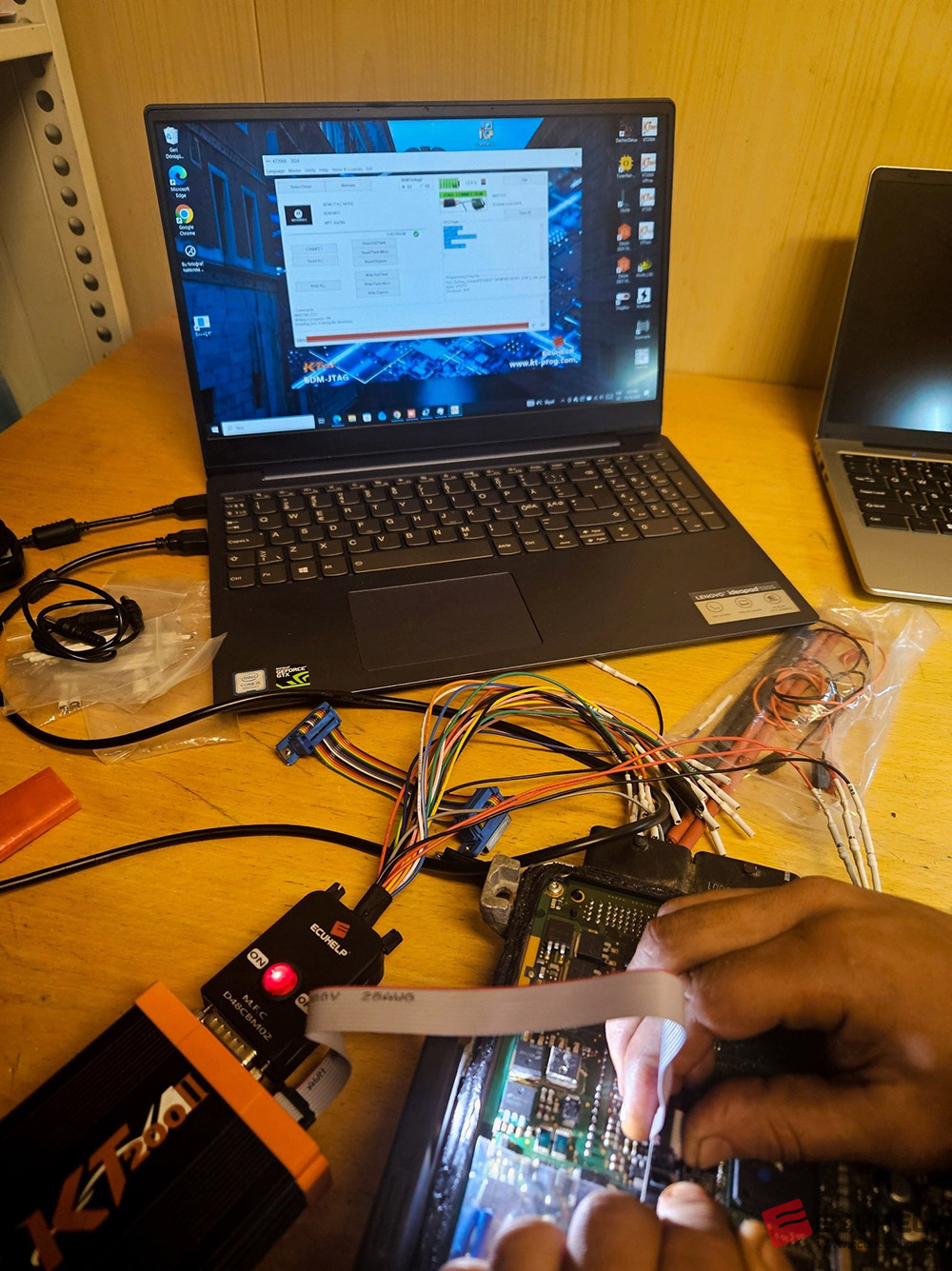

Connect the multifunction cable as follows:

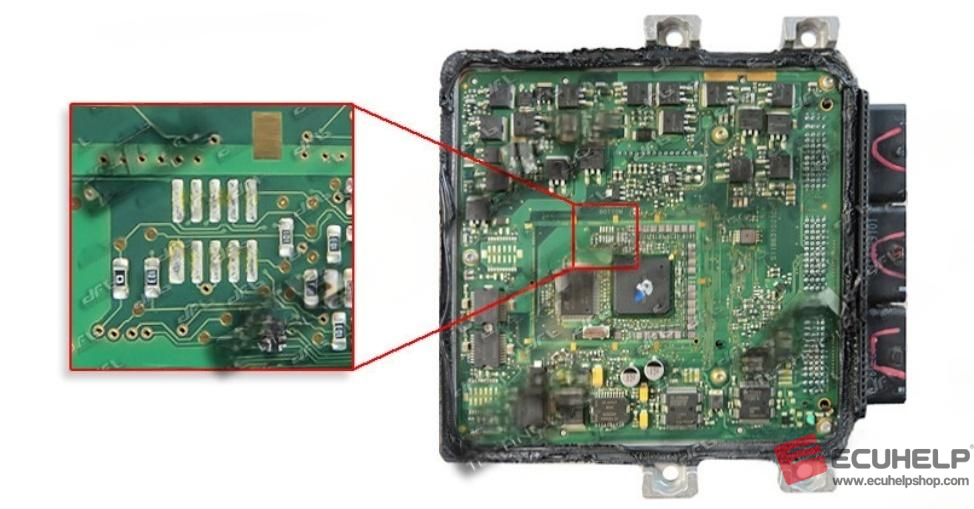

The BDM port is this:

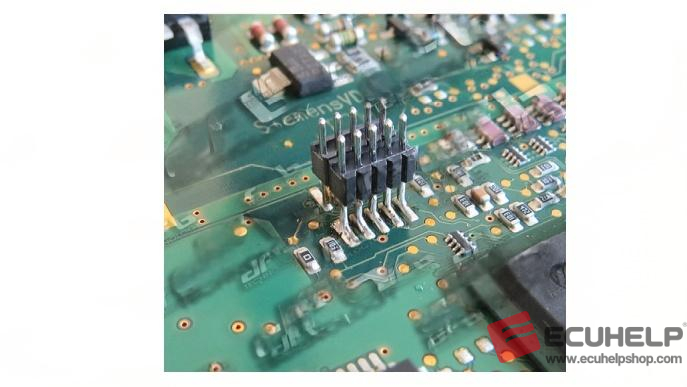

Solder the dip/sip connectors on the pcb:

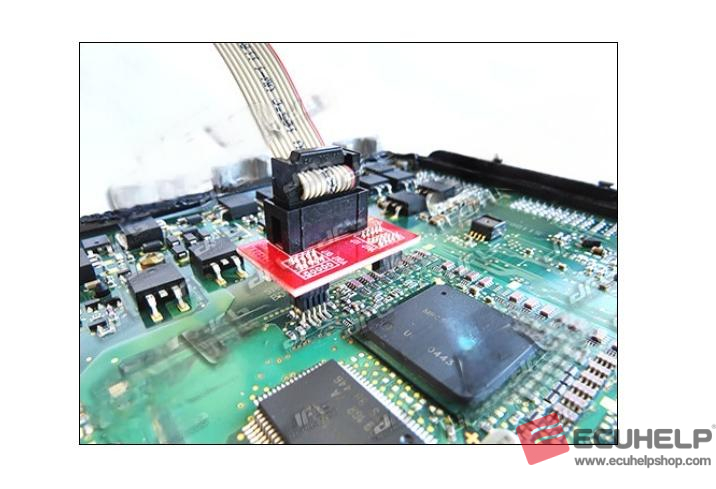

Insert Siemens/Marelli adapter as in photo:

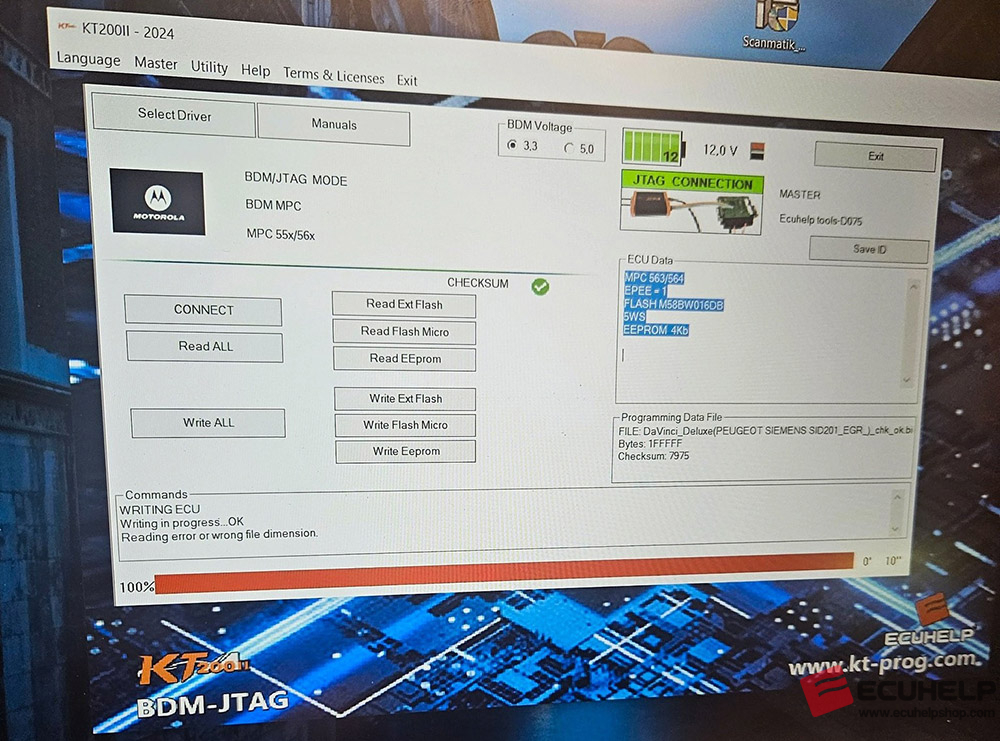

KT200II reads and writes SID201 use the following driver:
→ BDM/ JTAG MODE
→ BDM MPC
→ MPC55x/56x
