KT200II Read ME7.5 Audi TT 1.8 Petrol in Full System Mode

Aug 7, 2025 KT200II Test Reports

ECUHELP KT200II ECU Programmer has been successfully tested to read and write Bosch ME7.5 from an Audi TT 1.8L Petrol Full System Mode.

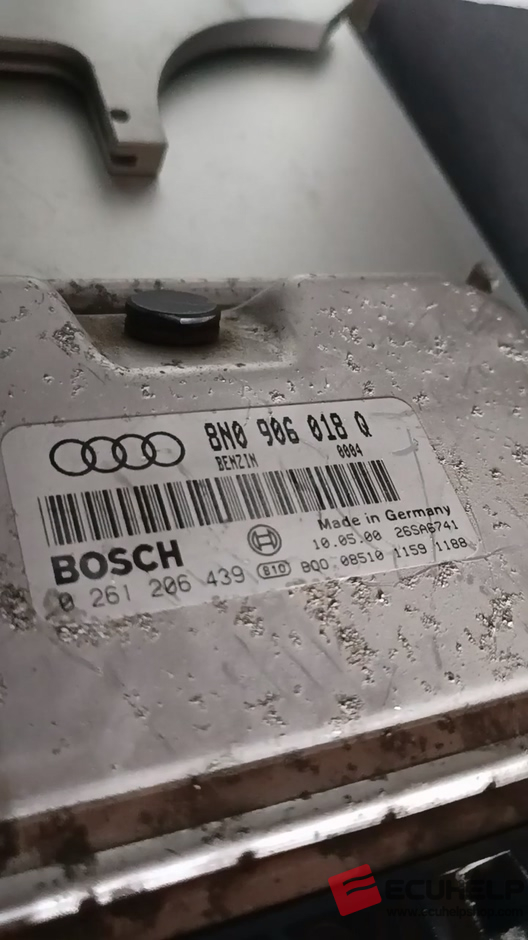

Below is the image of the ME7.5 ECU unit:
KT200II Read ME7.5 Audi TT 1.8 Petrol in Full System Mode-01

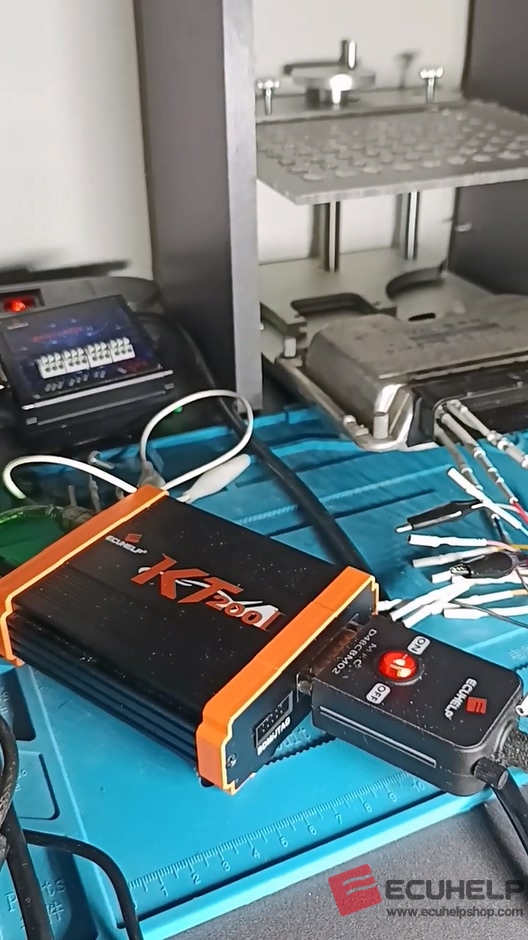

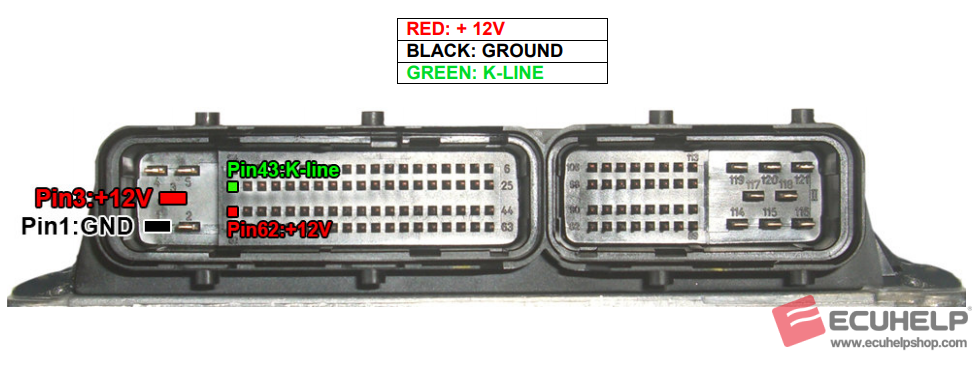

Connect the ECU ME7.5 using the KT200II Multifunction Cable as shown below:
KT200II Read ME7.5 Audi TT 1.8 Petrol in Full System Mode-02

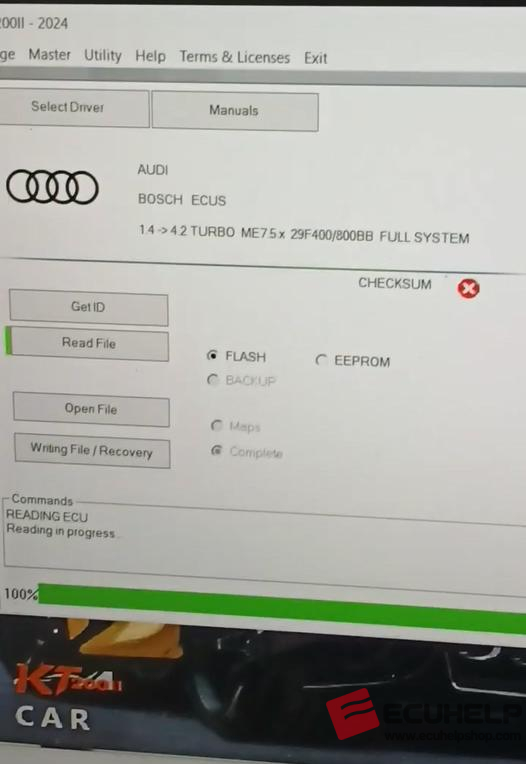

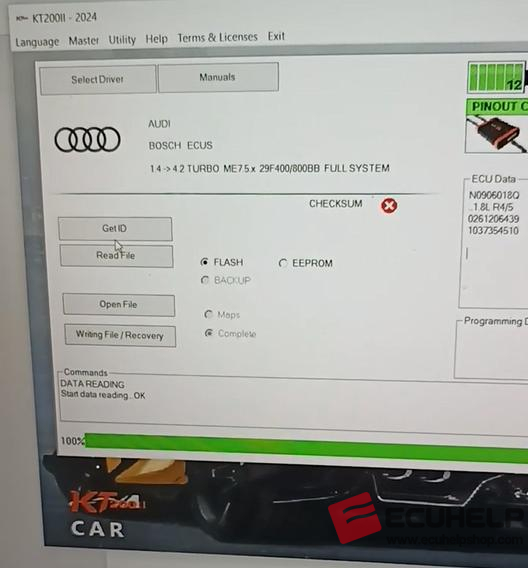

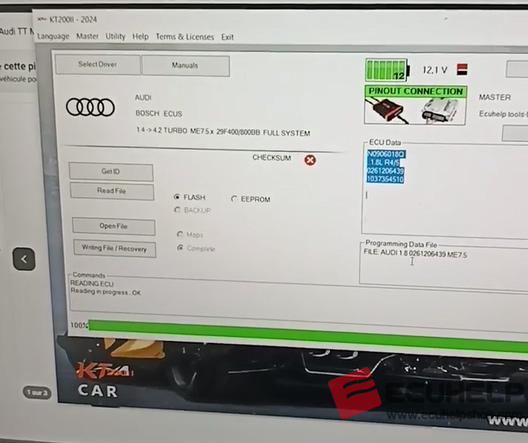

Once connected, use the KT200II software to do:
Get ID, read file, write file etc.
KT200II Read ME7.5 Audi TT 1.8 Petrol in Full System Mode-04
