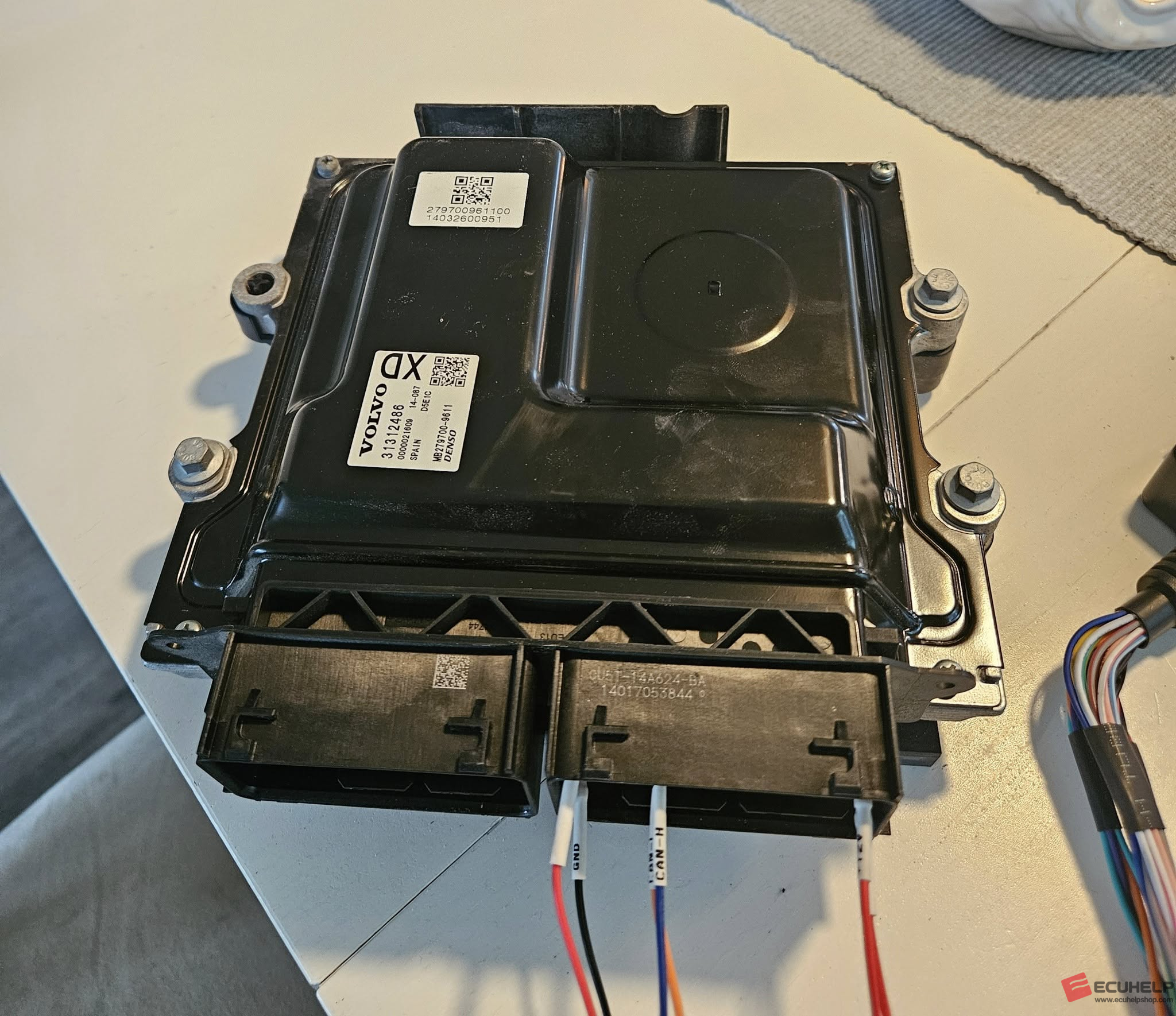

ECUHELP KT200 V1 Offline ECU Programmer is confirmed to work with Volvo V60 D4 2014 Denso MB279700-9611 Pinout Mode, Read 17minm, unlock 10sec,write 9min and checksum by tool.
Reading and unlocking with KT200:

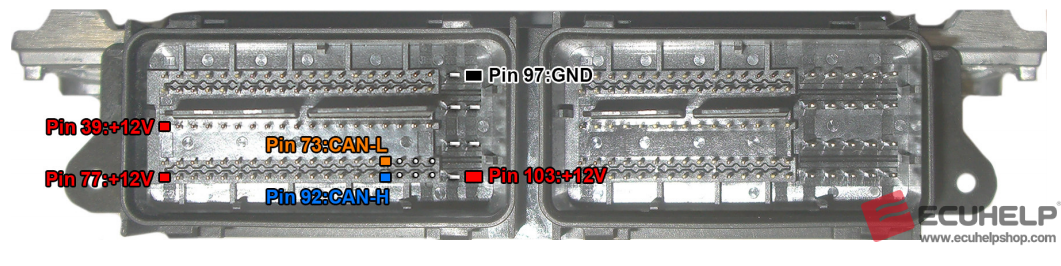

Connect the following pinout using the multifunction cable. Start the driver:
CAR > VOLVO > TOOLS VOLVO >
UNLOCK DENSO MB279700 9641 SH72546R CAN

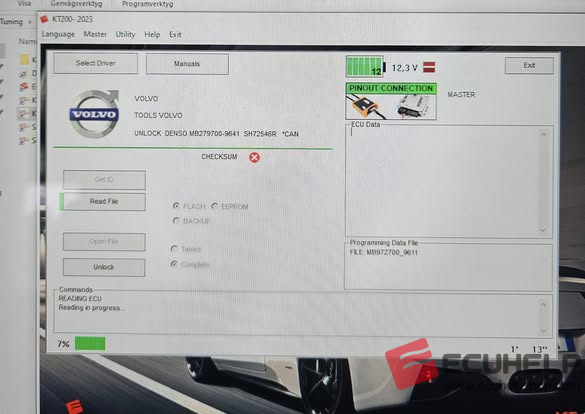

Click on the “READ FILE” button to read the file.
After reading, click on the “UNLOCK” button to unlock and enable the writing of the control unit.
WRITING with KT200:

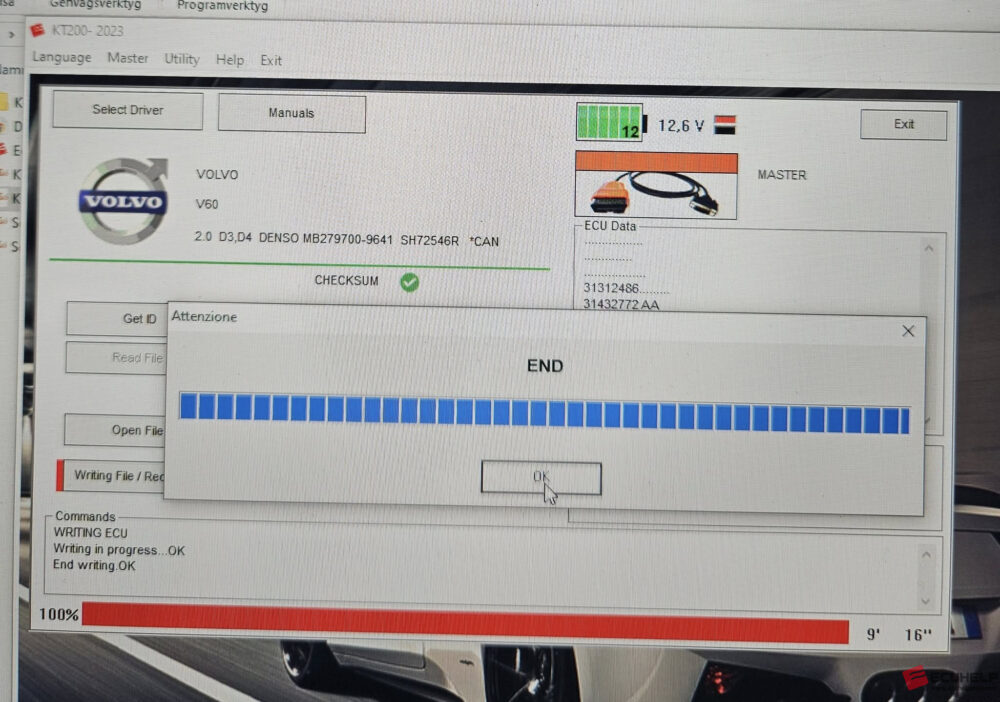

Now it will be possible to reconnect the control unit to the car and write the modified file via OBD.
Use the following driver:
CAR > VOLVO > [model] >2.0 DENSO MB279700 9641 SH72546R CAN
Alternatively, you can also write the ECU on the
table using the following pinout.
Note:
Compared to the read pinout, the CAN line is moved.
