The ECUHELP KT200 V1 ECU Programmer has been successfully tested for bench mode read and write on a Volkswagen Tiguan 2.0 TSI (2018) equipped with a Bosch MG1CS001 ECU.
Read time: 3 minutes
Write time: 1 minute 50 seconds
Checksum: Automatically corrected by the tool
Below is the appearance of the Bosch MG1CS001 ECU.
Before starting, please prepare the following accessories:
KT200 Multifunction Cable
Bench Box V2
Laboratory power supply or vehicle battery

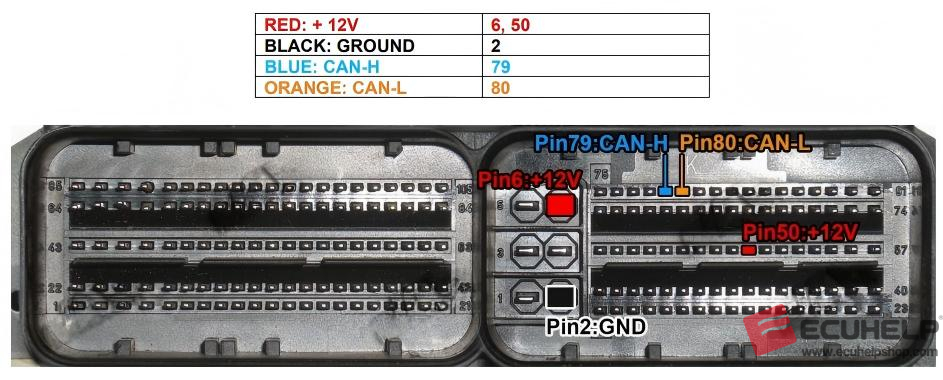

Connect the KT200 multifunction cable to the MG1CS001 ECU as shown below.
To perform read and write operations, select the following path in KT200 software:
BENCH MODE
AUDI / CUPRA / SKODA / VOLKSWAGEN
SPC5777 – VAG
MG1CS001
