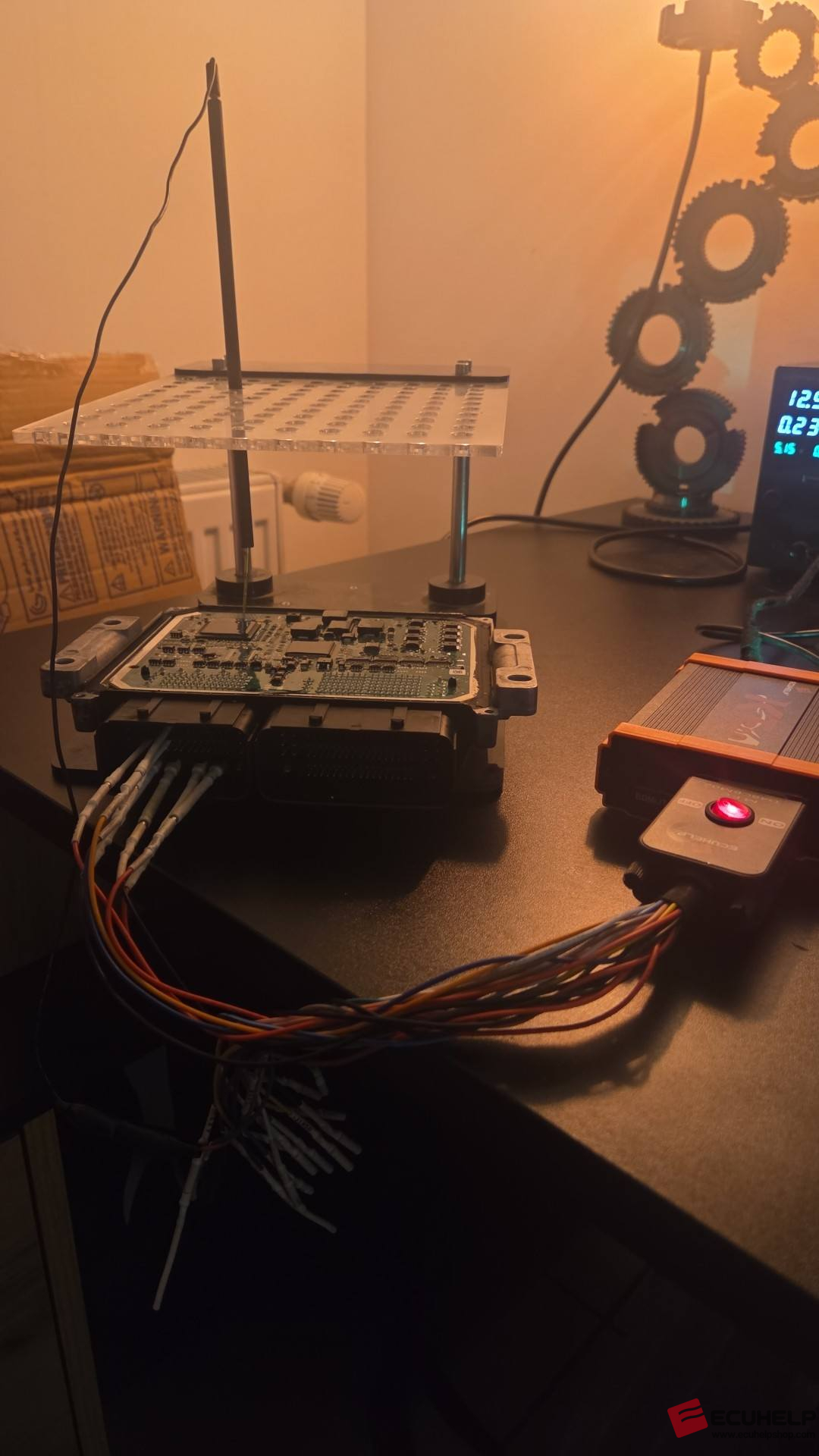

ECUHELP KT200II ECU Programmer is confirmed to read/write PSA Delphi DCM6.2A Boot Mode.
Kit to use:
– Multifunction cable
KT200II READ AND WRITE ECU:

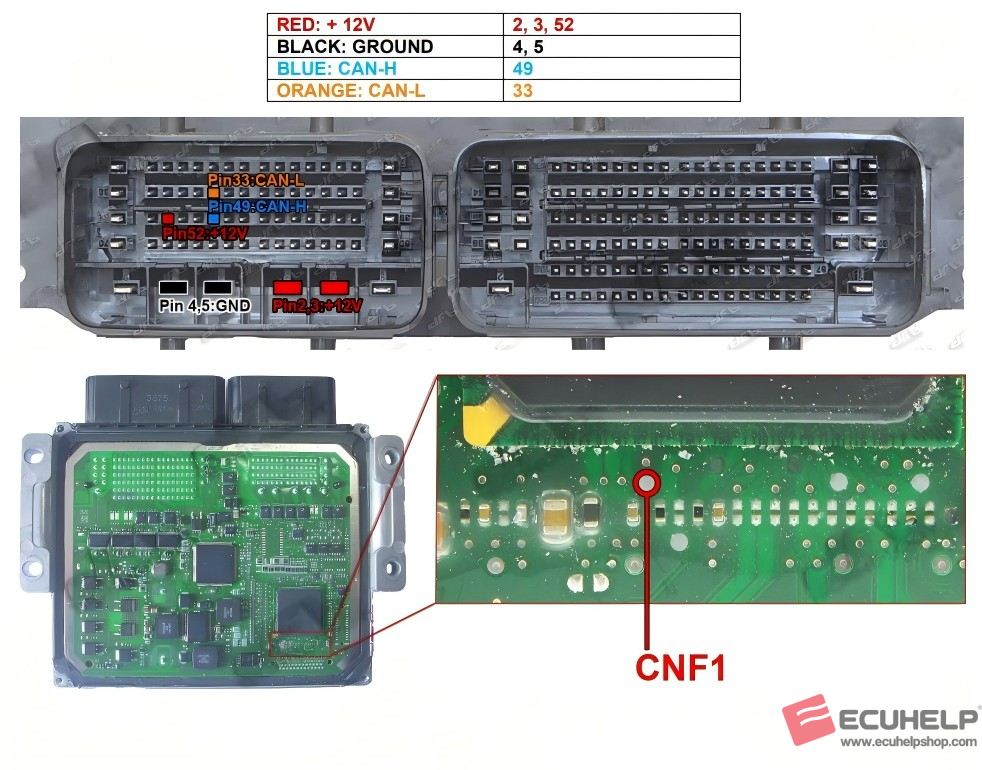

Connect with the multifunction cable the following pinout and the CNF1 signal on the pcb.

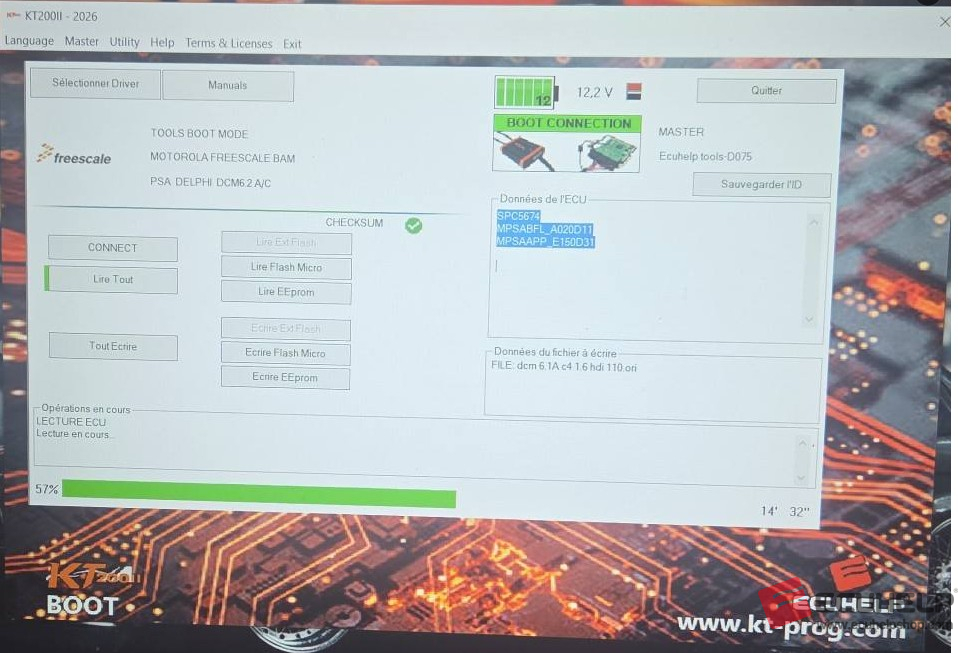

Use the driver:
→ TOOLS BOOT MODE
→ MOTOROLA FREESCALE BAM
→ PSA DELPHI DCM6.2A/C
