The ECUHELP KT200II ECU Programmer has been successfully tested to read and write the ECU of Kia Ceed 2011 1.6CRDi 115hp (EDC17C08) in Bench mode. The operation is stable and reliable, confirming KT200II’s compatibility with this ECU.

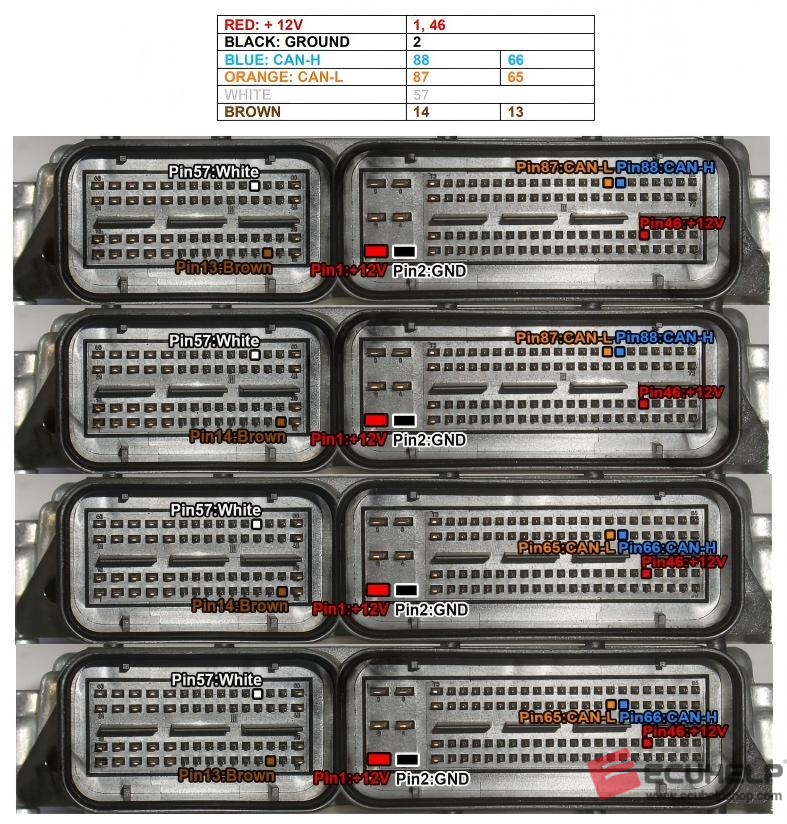

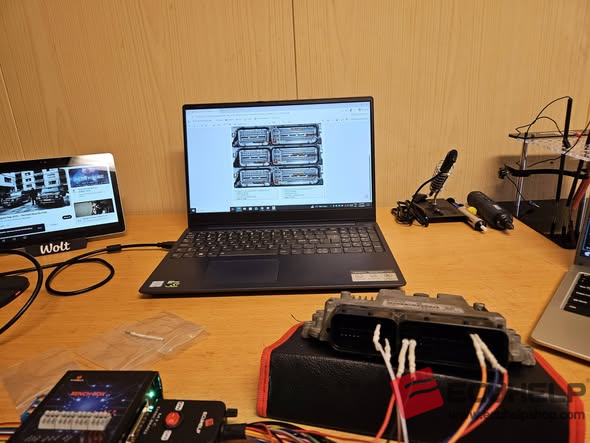

ECU Overview and Bench Connection:
Connect the multi-function cable as follows. For this ECU, there are 4 different types of hardware versions, try the following 4 combinations in series. The ECU will not suffer any damage during connection tests.

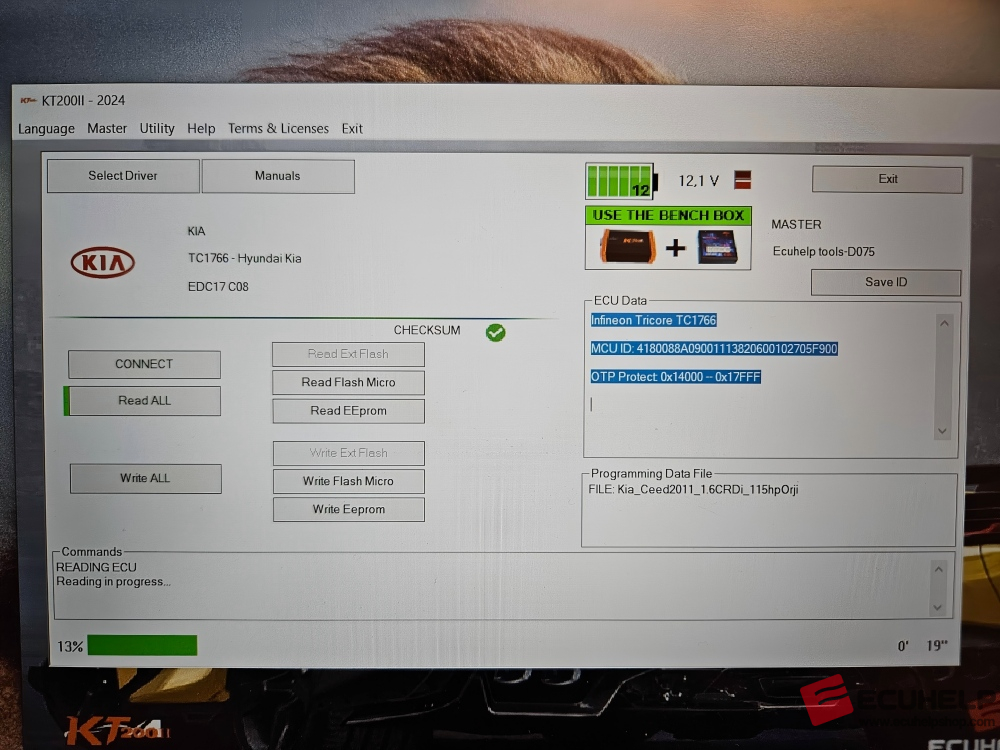

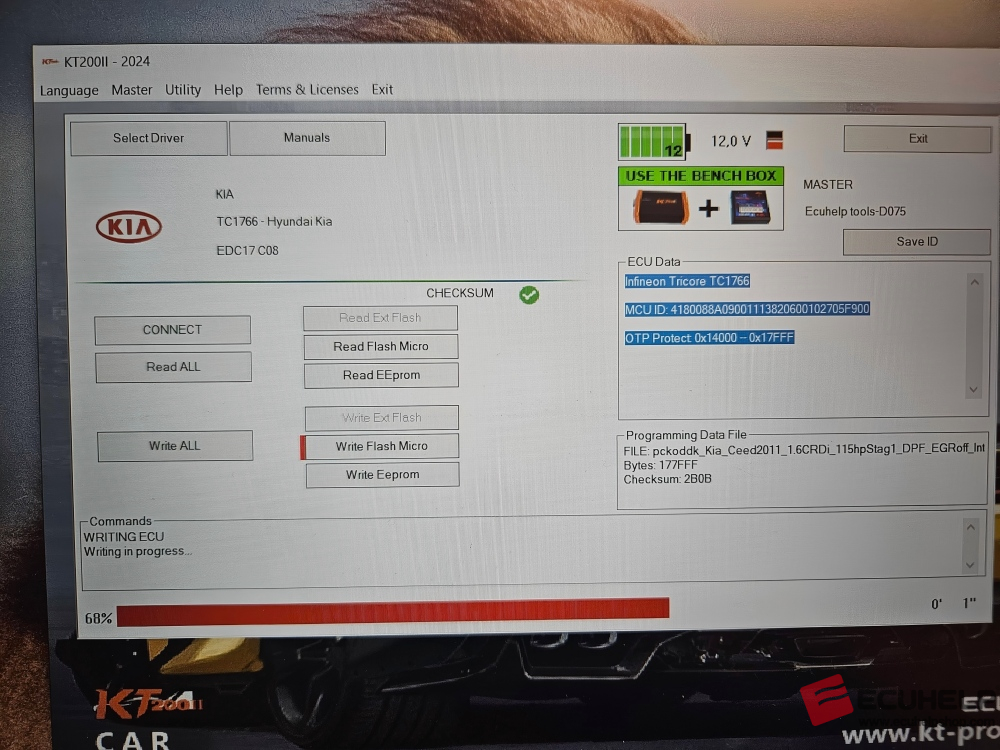

ECUHELP KT200II Software Path and Driver Selection:
To read and write this ECU using the KT200II, select the following path in the software:
→ BENCH MODE
→ HYUNDAI / KIA
→ TC1766 – HYUNDAI KIA
→ EDC17 C08

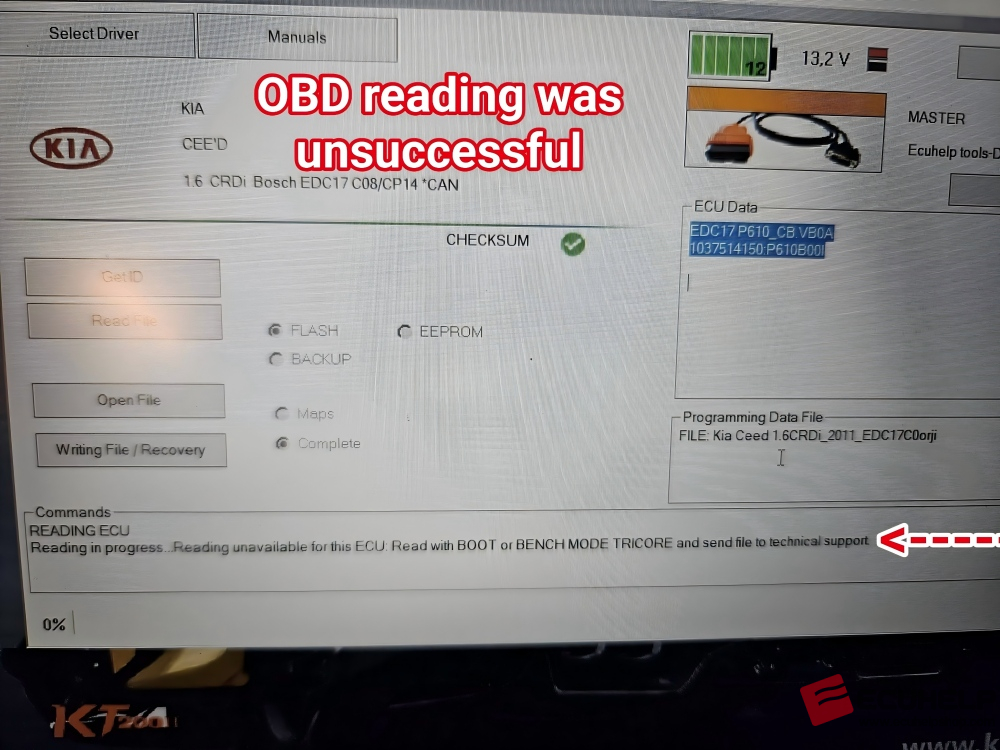

OBD Mode Note:
It should be noted that OBD reading is not successful for this vehicle and ECU configuration. Therefore, Bench mode is required to complete the read and write operations.

Conclusion:
The ECUHELP KT200II is a reliable solution for bench read and write of Kia Ceed 2011 1.6CRDi EDC17C08 ECUs. Although OBD mode is not supported in this case, bench mode provides a safe and effective alternative for ECU data operations.
