ECUHELP KT200II is confirmed to read/write Hyundai i20 2017 Delphi DCM6.2AP Boot Mode.

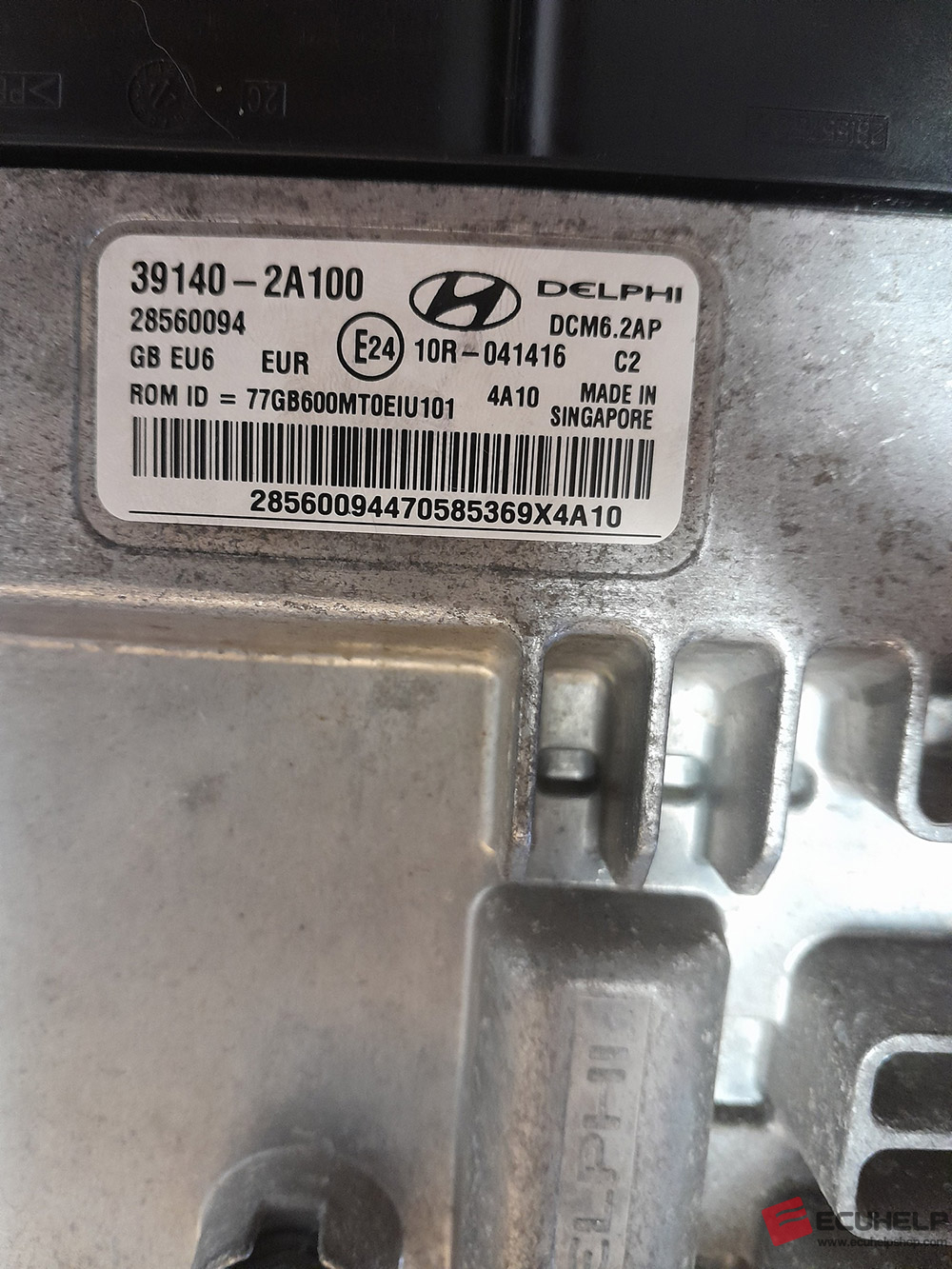

Look at the image of ECU Delphi DCM6.2AP:
Kit to use:
– Multifunction cable
The procedure to read and write ECU DCM6.2AP:

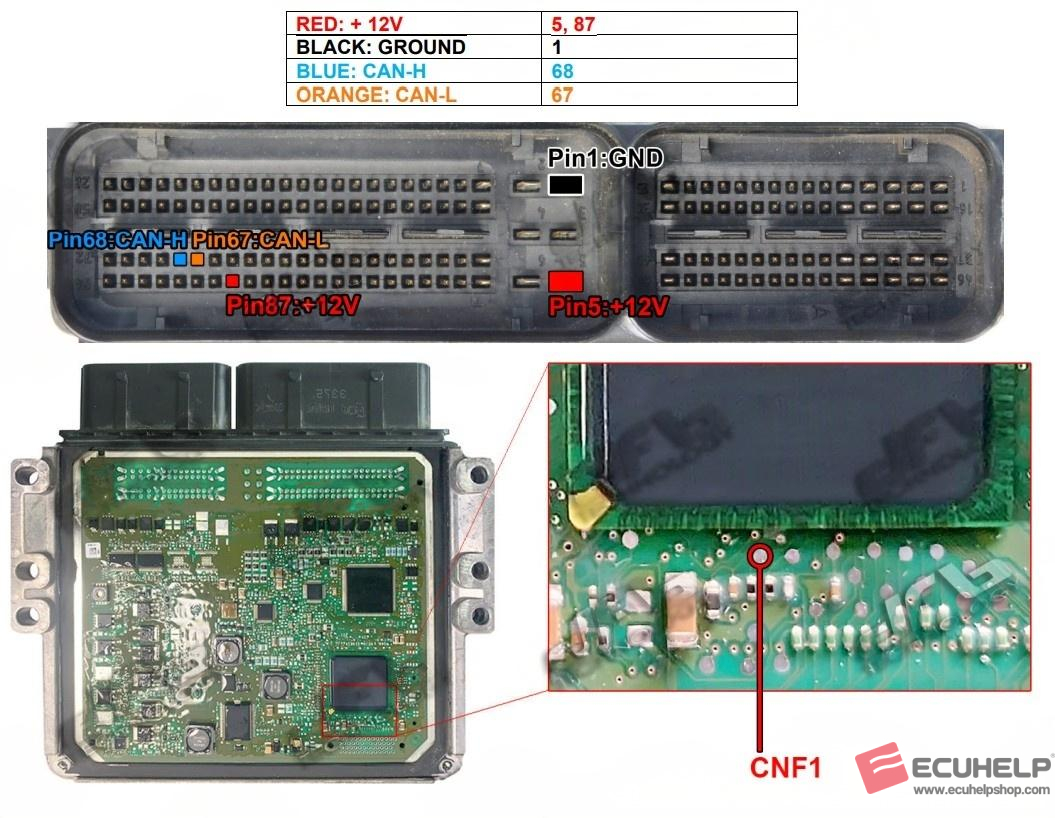

Connect with the multifunction cable the following pinout and the CNF1 signal on the pcb.
In the KT200II software, use the driver:
→ TOOLS BOOT MODE
→ MOTOROLA FREESCALE BAM
→ HYUNDAI-KIA DELPHI DCM6.2AP
