The ECUHELP KT200II ECU Programmer has been fully tested and confirmed to read and write the Ford EDC17CP65 ECU in Bench mode safely and reliably.
ECU Overview:
Before starting, take a moment to identify the Ford EDC17CP65 ECU.

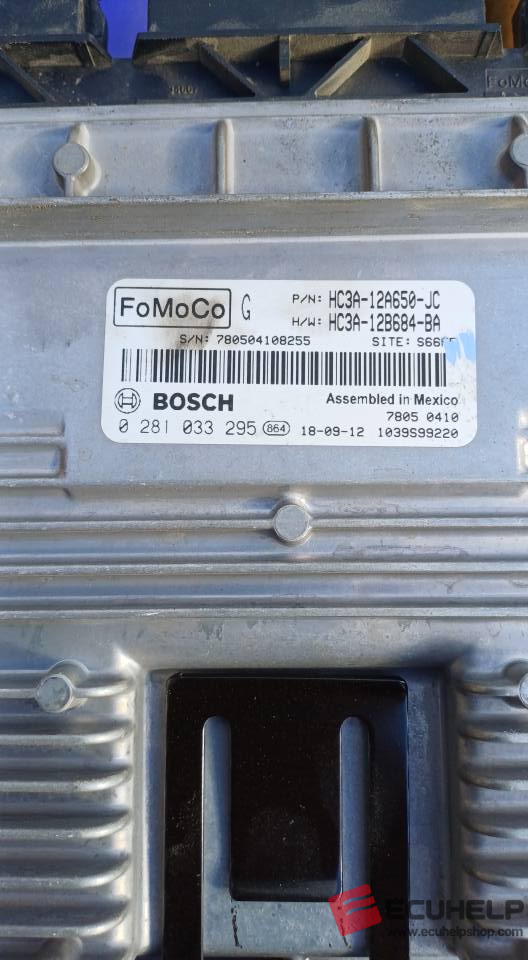

ECU reference image:
Bench Connection:

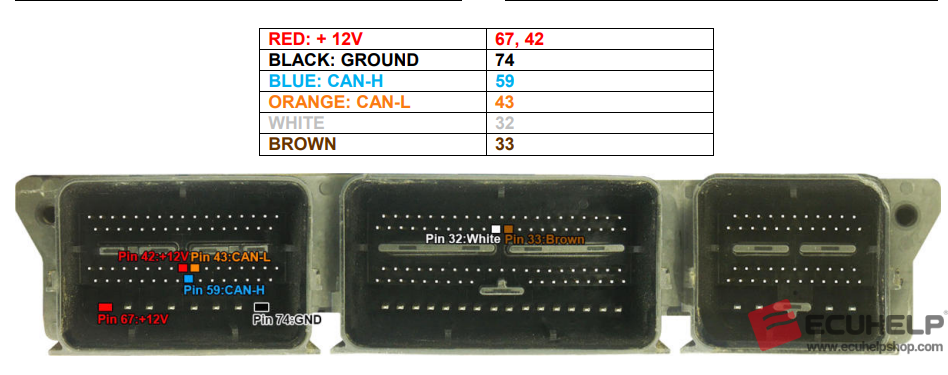

Connect the KT200II multifunction cable to the ECU according to the bench wiring diagram.

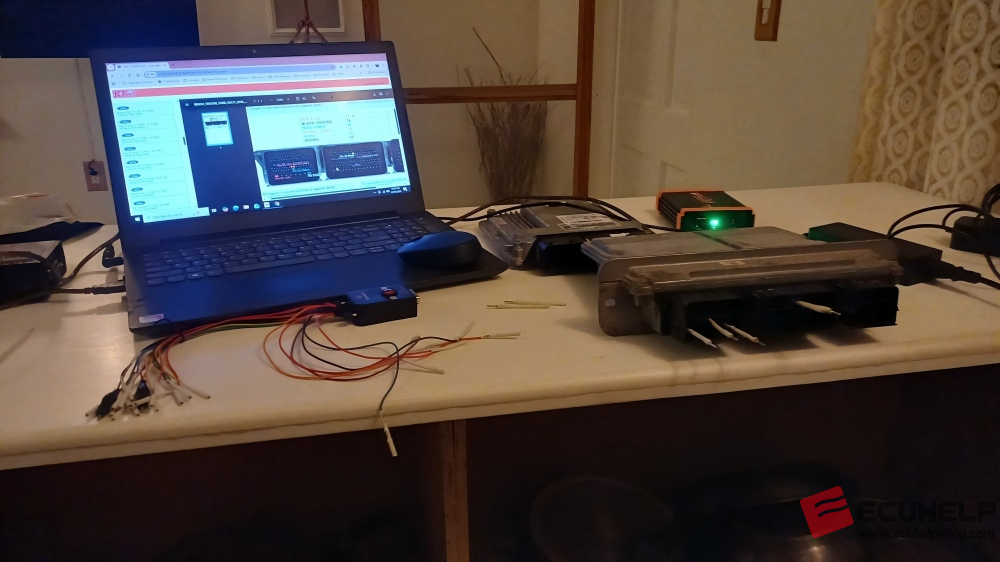

Connection reference images:
Software Driver Selection
Open the KT200II software and select the driver below to perform read and write operations:
→ BENCH TRICORE
→ FORD
→ TC1793 – FORD
→ EDC17 CP65
