The ECUHELP KT200II ECU Programmer has been successfully tested to read and write Continental CPC3 ECUs used in Mercedes Atego, Actros, and other commercial vehicles—via JTAG Mode. This confirmation adds another strong capability to the KT200II tool for truck ECU programming.
Supported ECU: Continental CPC3
KT200II works flawlessly with the Continental CPC3 ECU.
See the ECU image below:
JTAG Mode Connection:
Connect the KT200II to the Continental CPC3 ECU using the correct JTAG wiring configuration.

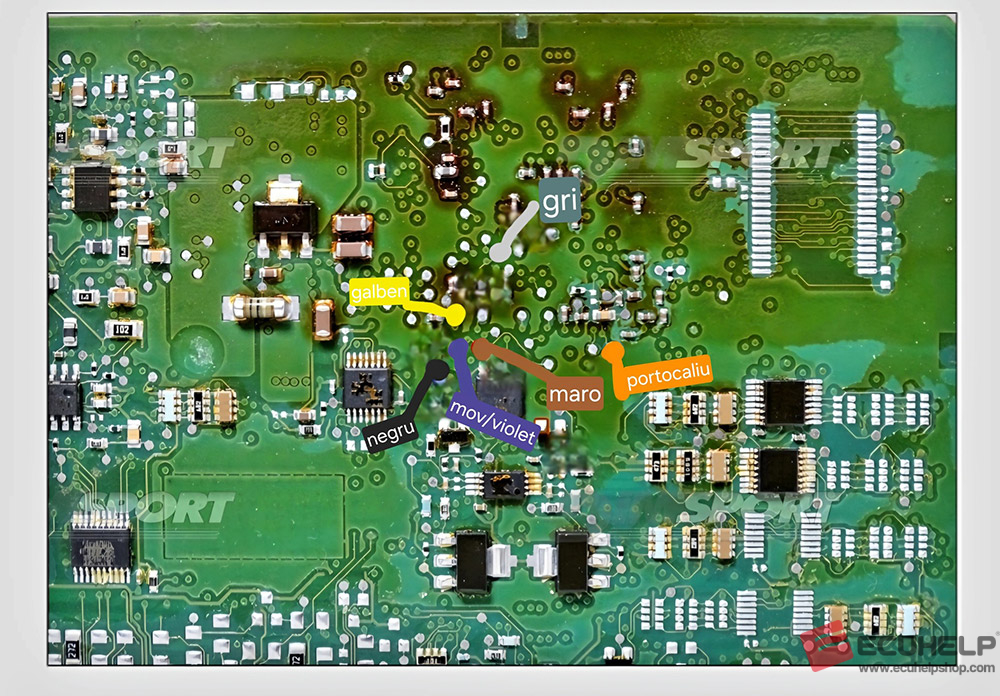

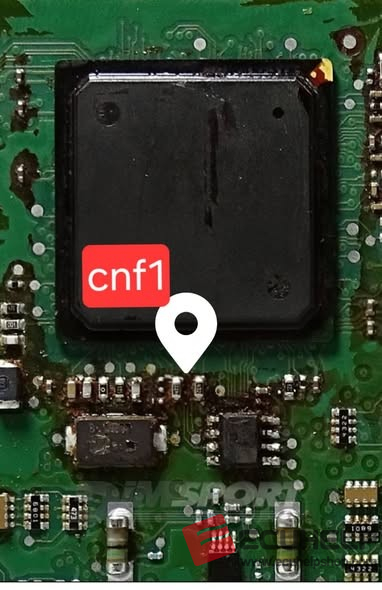

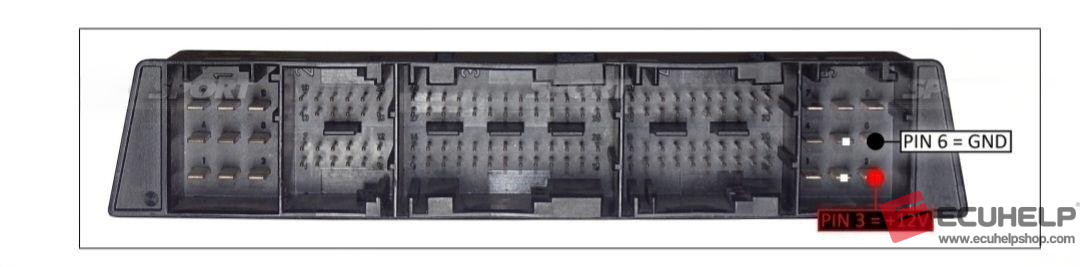

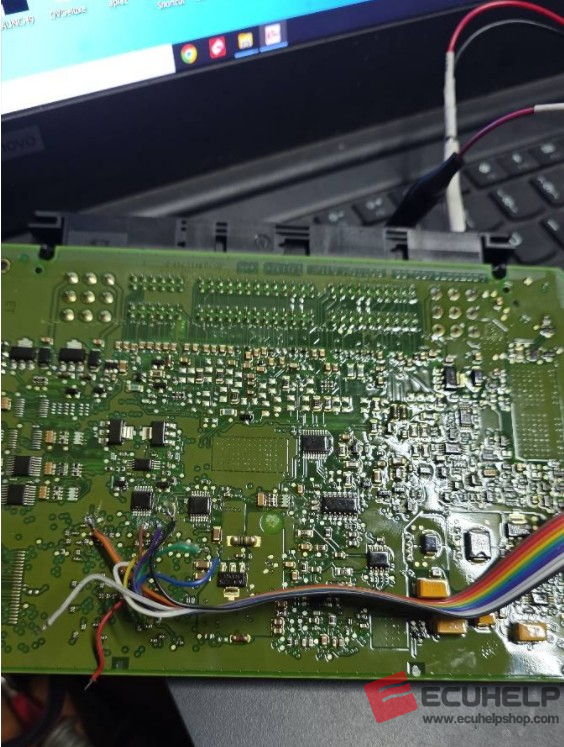

Refer to the connection photos below for accurate wiring guidance:
Read & Write Successfully Completed:
The final test shows 100% successful reading of the Continental CPC3 via JTAG Mode using KT200II.

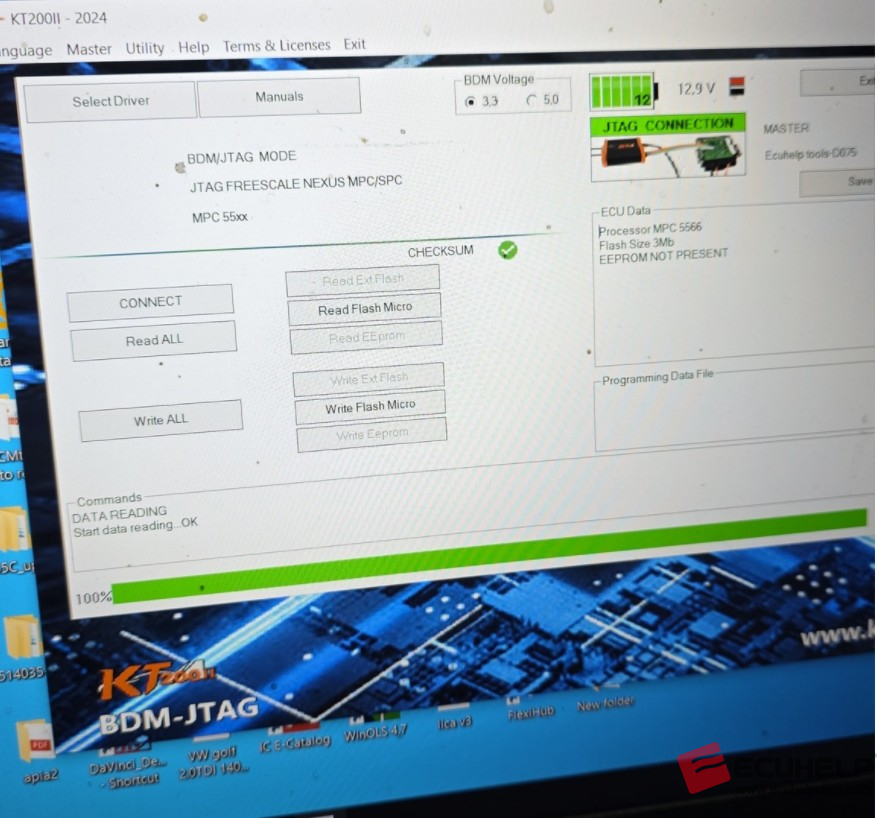

See final successful read screenshot:
