Vehicle: F45 218i 2020.04
ECU: MG1CS201
R/W/CS by both KT200II / KT200

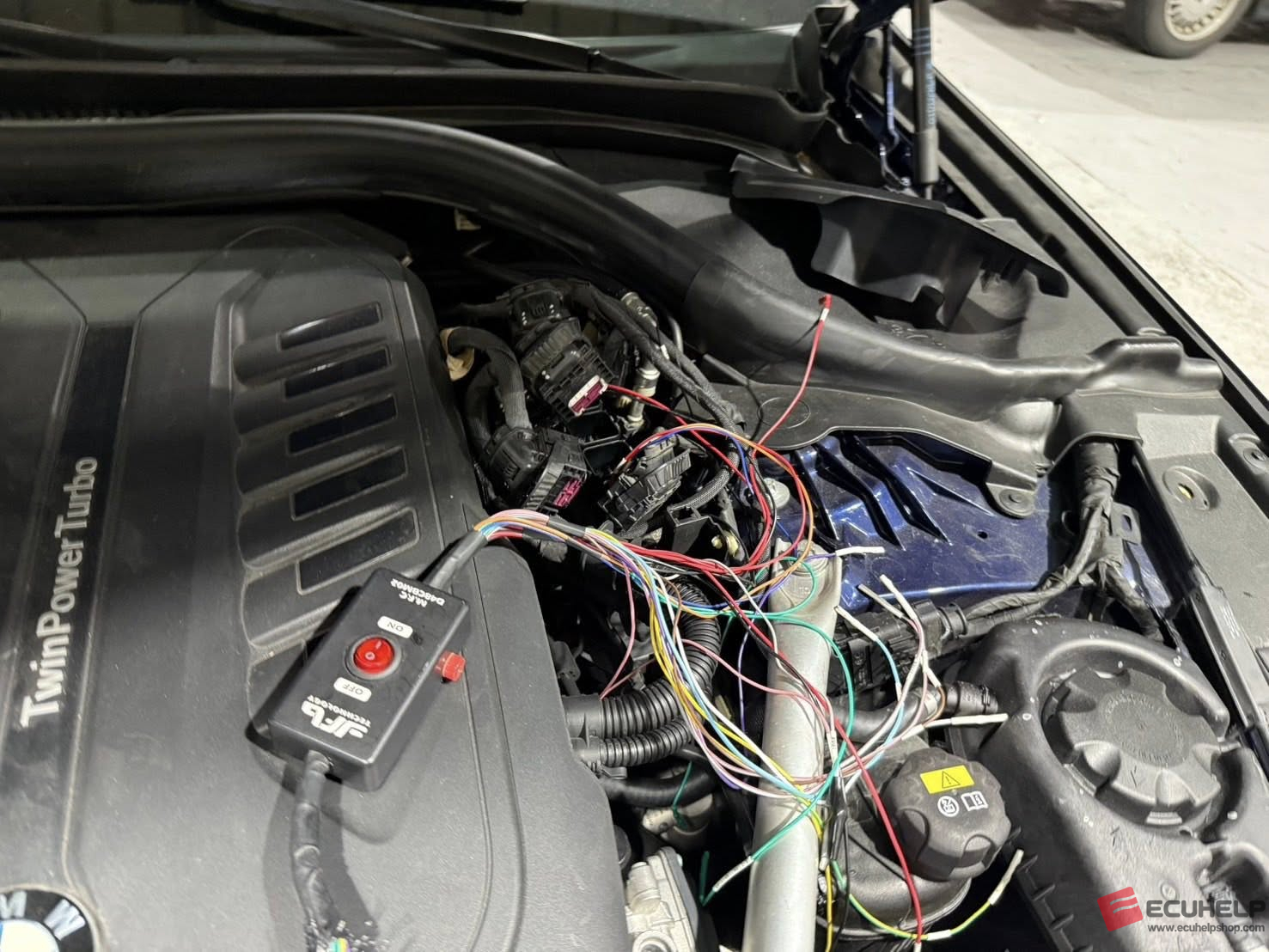

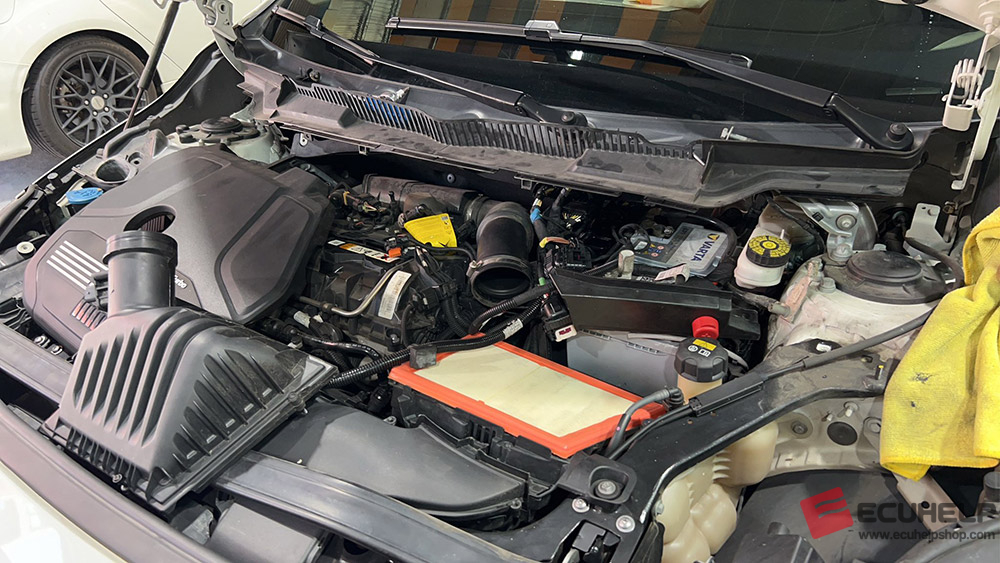

But a lot of things need to be disassembled, which is very troublesome.
Use:
– Cable D-F-B D48CBB014
– Bench Box V.2
– Laboratory power supply or battery
In the absence of cable D-F-B D48CB014
use:
– Multifunction cable
– Bench Box V.2
– Laboratory power supply or battery

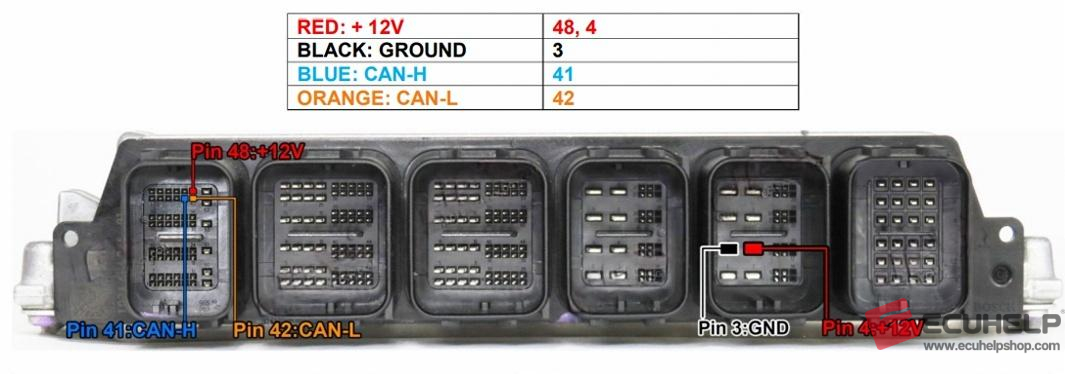

Connect the KT200II multifunction cable as follows:

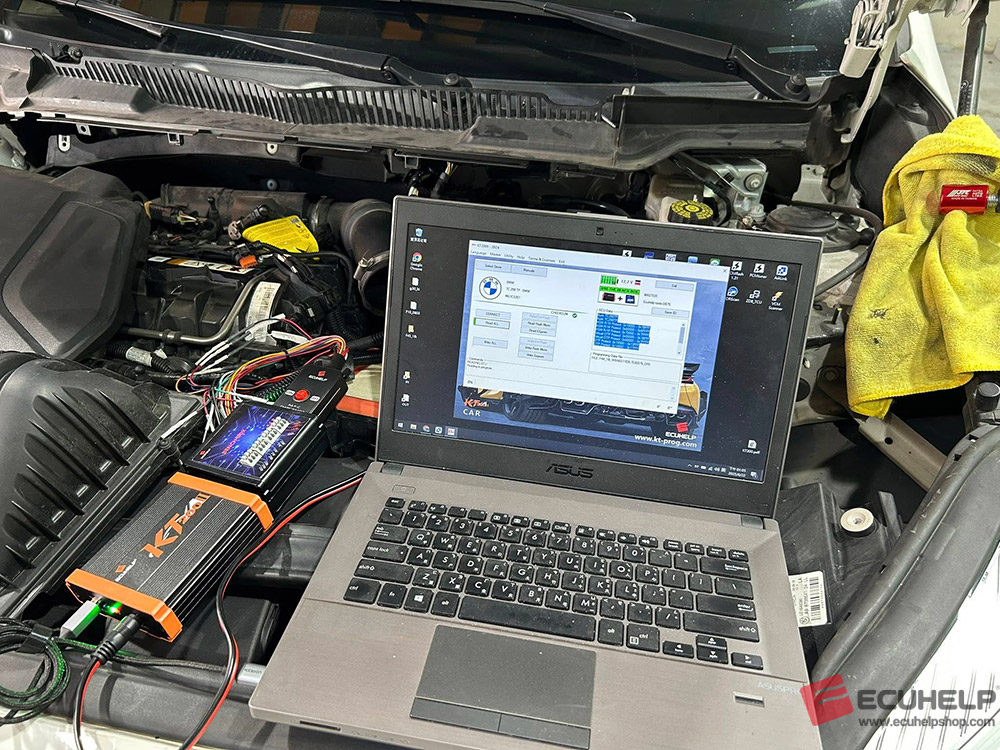

To read and write use the following driver of KT200II:
→ BENCH MODE
→ BMW / MINI / TOYOTA
→ TC298TP – VAG
→ MG1CS201
With this setup, KT200II ensures safe and effective R/W/CS on the MG1CS201 ECU.
