ECUHELP KT200II ECU Programmer has been successfully tested to read and write Peugeot 407 ECU Bosch EDC16C3 Bench Mode.
Connection Guide:

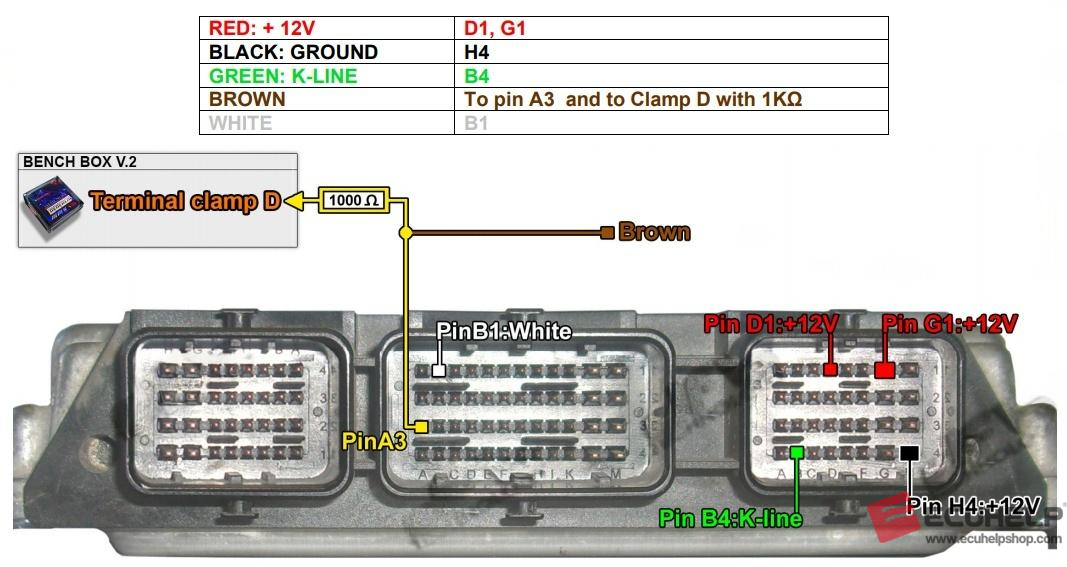

To perform the Bench operation, connect the KT200II multifunction cable to the ECU using the Bench Box.
When using KT200II software, select the following driver path:
→ BENCH MODE
→ [brand]
→ MPC555/6 – [brand]
→ EDC16 C3

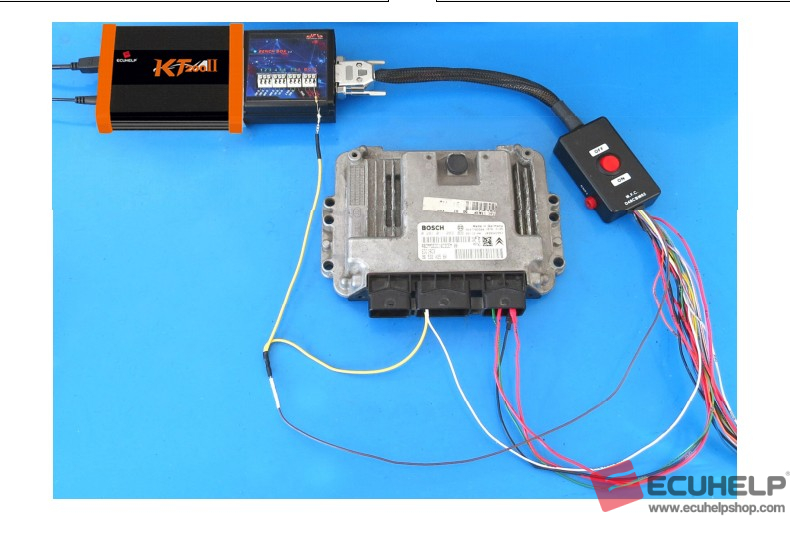

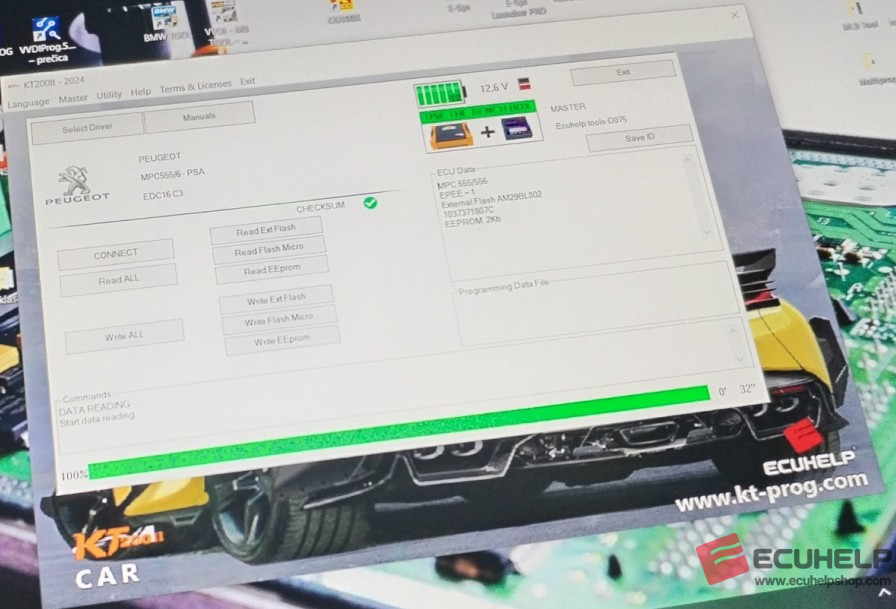

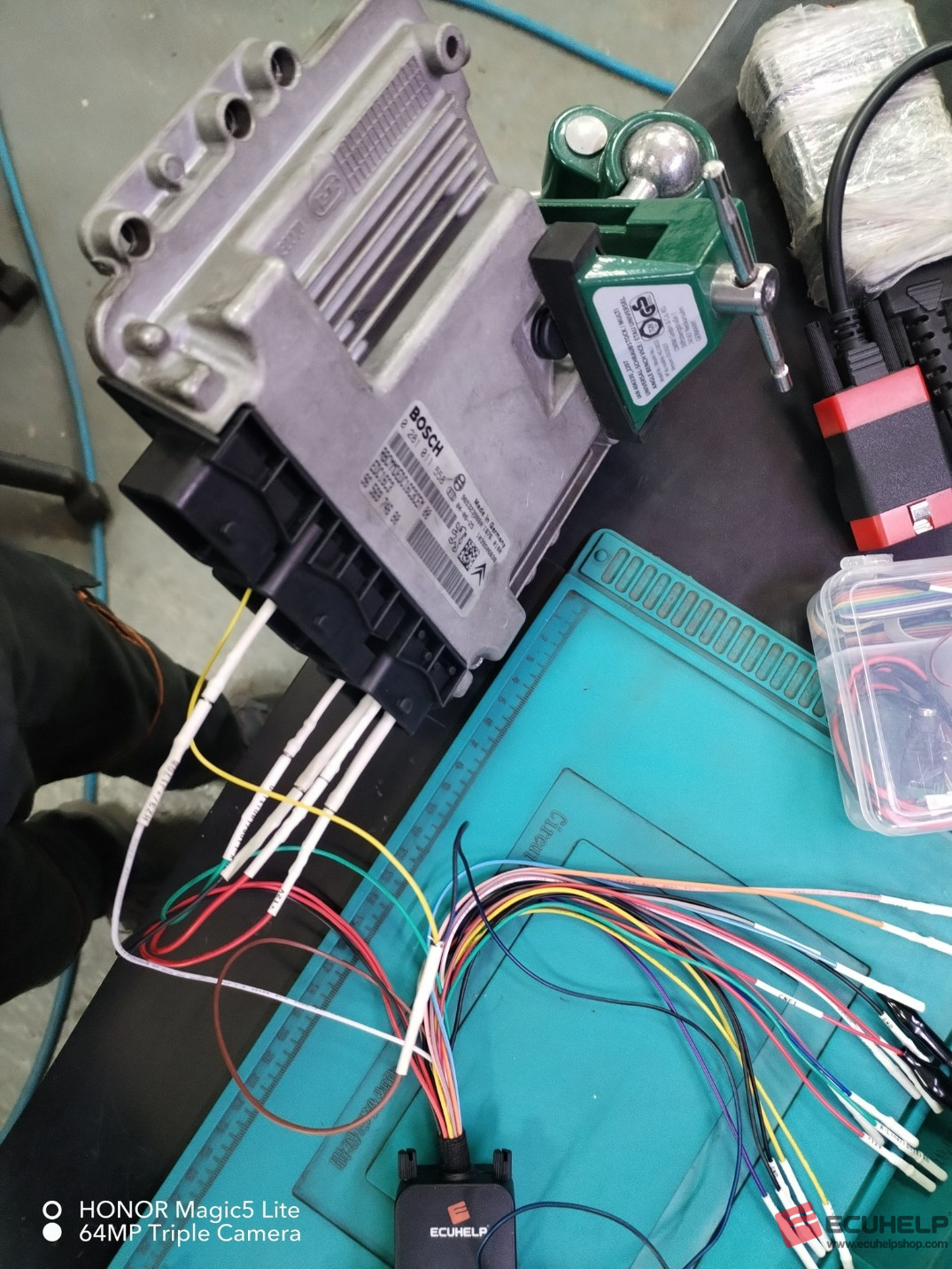

The following images show the connection of KT200II to the EDC16C3 ECU on bench and the reading process in progress.
With KT200II, reading and writing Peugeot 407 EDC16C3 is stable and efficient — a reliable solution for ECU tuning and diagnostics.
