ECUHELP KT200II ECU Programmer is confirmed to read and write Iveco Edc17cv41 on Bench, also do the checksum automatically.
Tools and adapters to use:
– Multifunction cable
– Bench Box V.2
– Laboratory power supply or battery

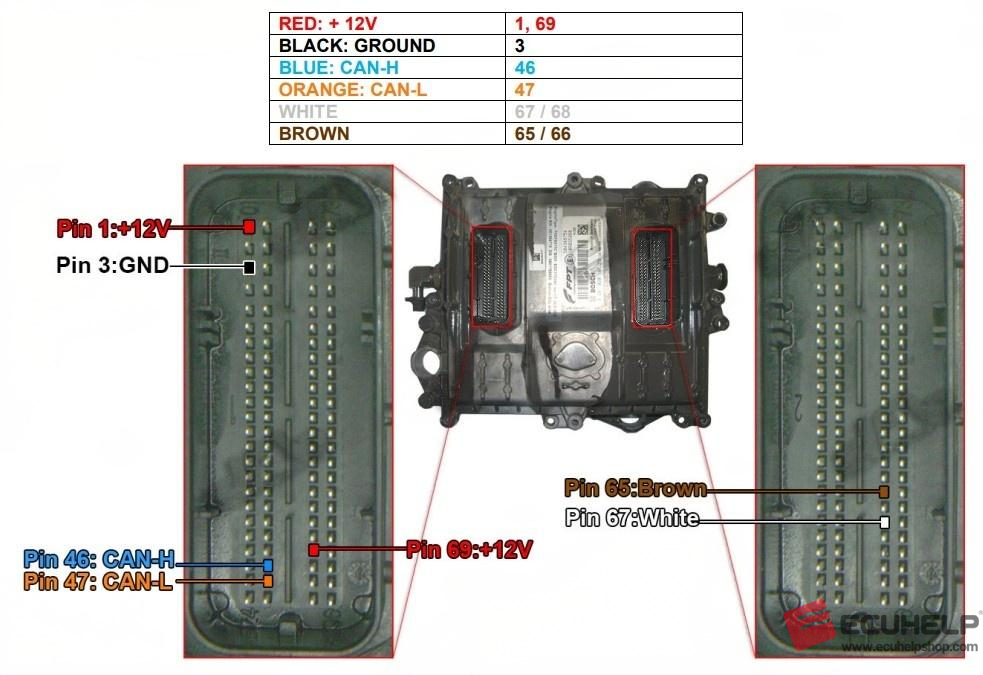

Connect the multi-function cable as follows. For this ECU there are 2 different types of hardware versions, try the following 2 combinations in series. The ECU will not suffer any damage during connection tests.

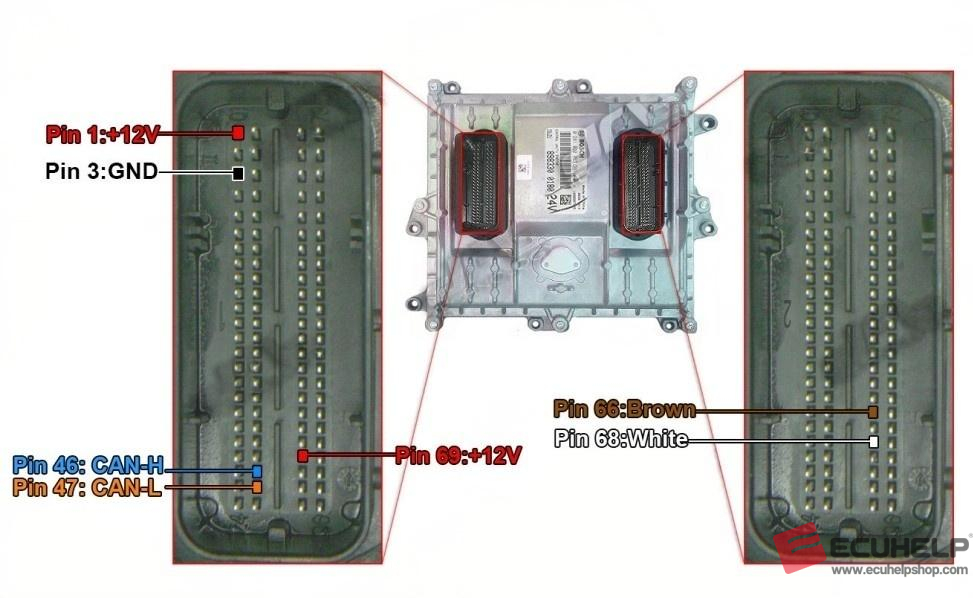

Attention: Some ECUs enter bench mode with the pinout on the next page:

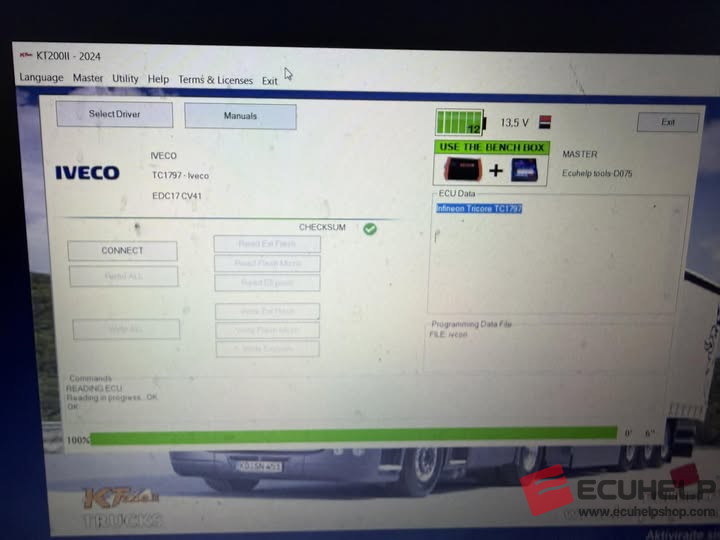

To read and write use the following driver in the KT200II:
→ BENCH MODE
→ [brand]
→ TC1797 – [brand]
→ EDC17 CV41
