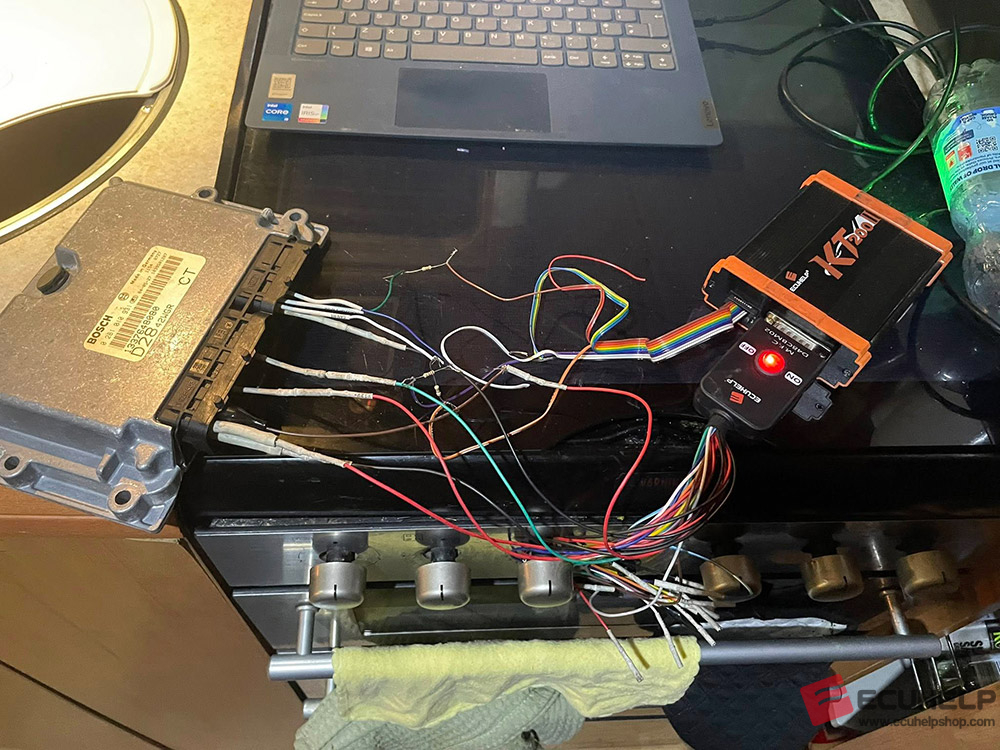

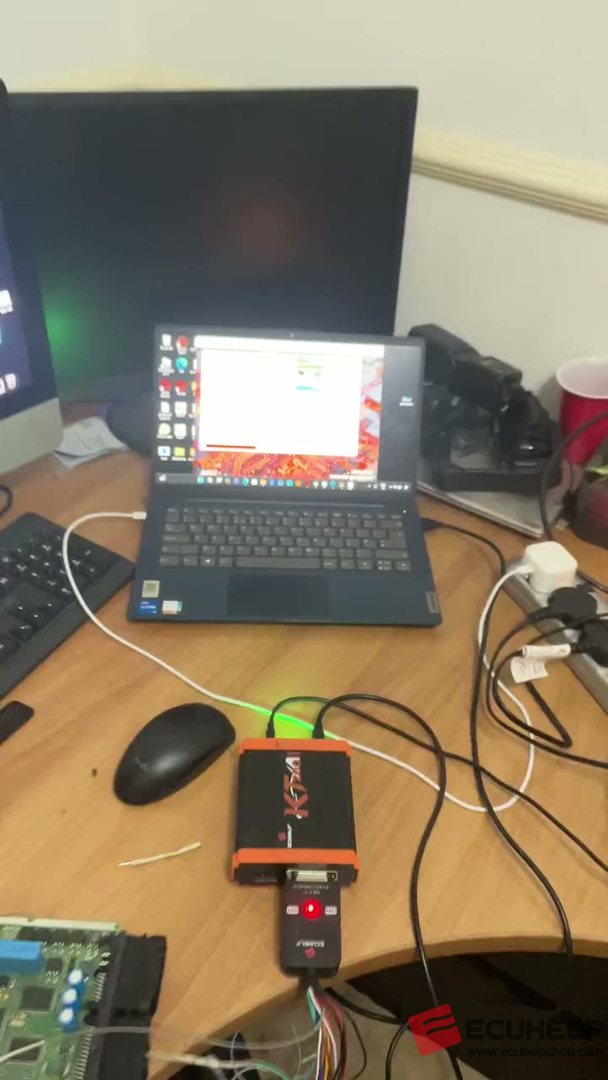

ECUHELP KT200II ECU Programmer is tested to read and write EDC15c7 Boot mode. One user feedback: after benching I couldn’t read with a “error set” fault, entered the KT200II into boot mode, then read and wrote file with immo solution! Perfect work.

KT200II kit to use:
– Multifunction cable

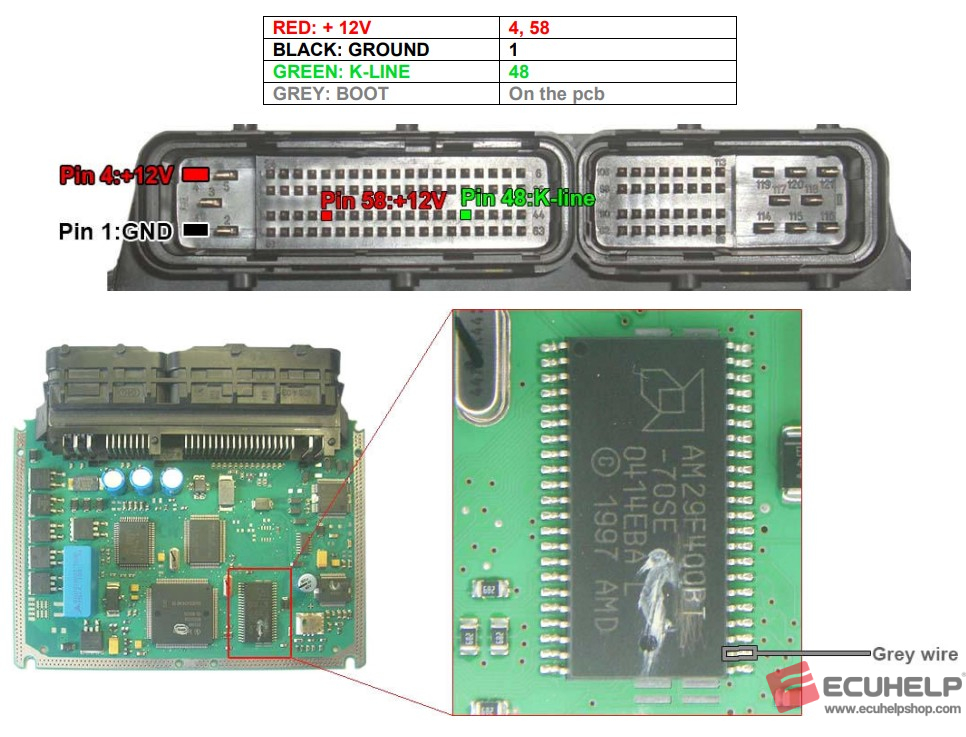

Connect the KT200II multifunction cable as follows:

KT200II reads and writes use the following driver:
→ TOOLS BOOT MODE
→ SIEMENS-INFINEON C167
→ Bosch – Flash 29F400

Attention:

If the ECU doesn’t enter boot mode, proceed as follows:
→ Switch off the ECU and remove the grey wire.

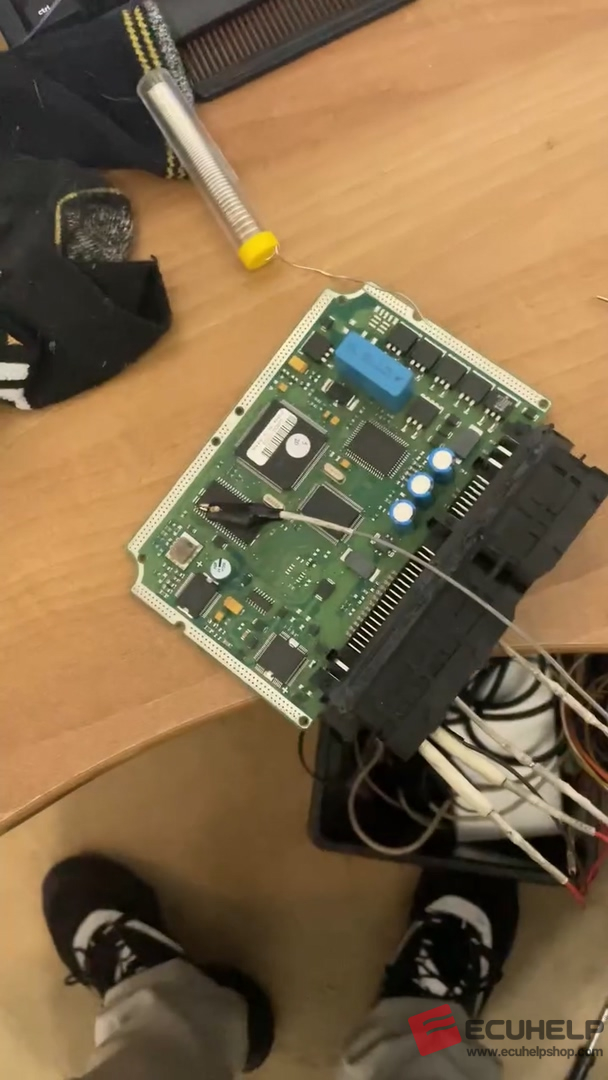

→ Connect directly to ground the boot pin with a needle.
→ Switch on the ECU.
→ Remove the ground.

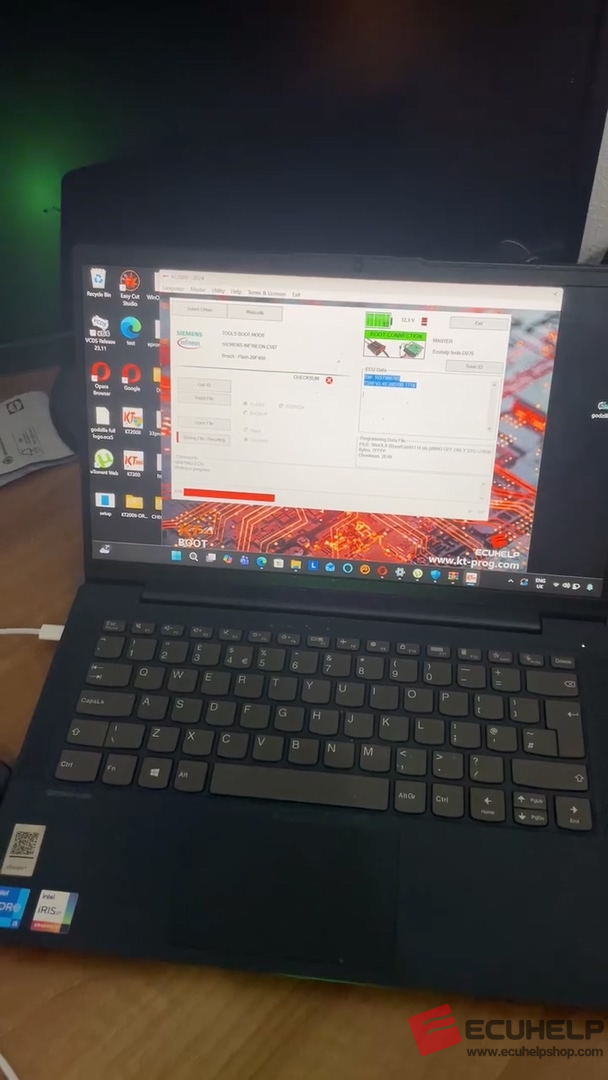

→ Launch the driver and click the read / write buttons.
