ECUHELP KT200II ECU Programmer has been successfully verified to perform bench read and write operations on a VW Golf 7.5 2018 1.5 Bluemotion 130HP equipped with MG1CS011 ECU (SPC5777).
Vehicle & ECU Details
Vehicle: VW Golf 7.5 (2018)
Engine: 1.5 Bluemotion 130HP
ECU Type: MG1CS011
Processor: SPC5777
Connection Mode: Bench
Read/Write Status: Successful
ECU Overview

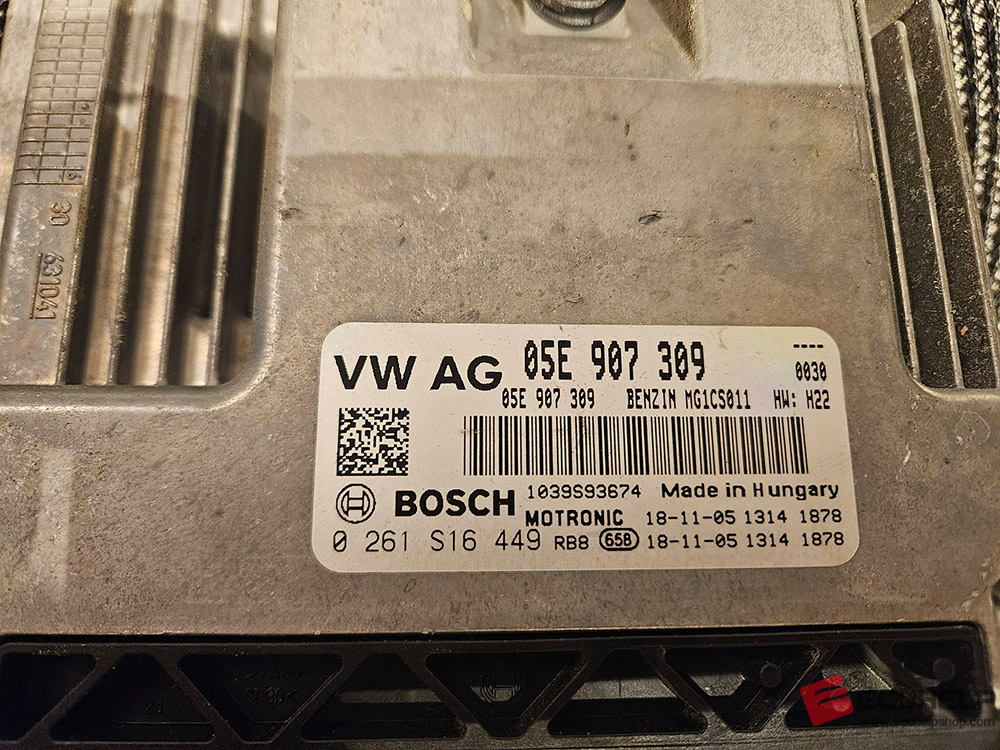

Before starting, check the physical layout of the MG1CS011 SPC5777 ECU:
Required Equipment

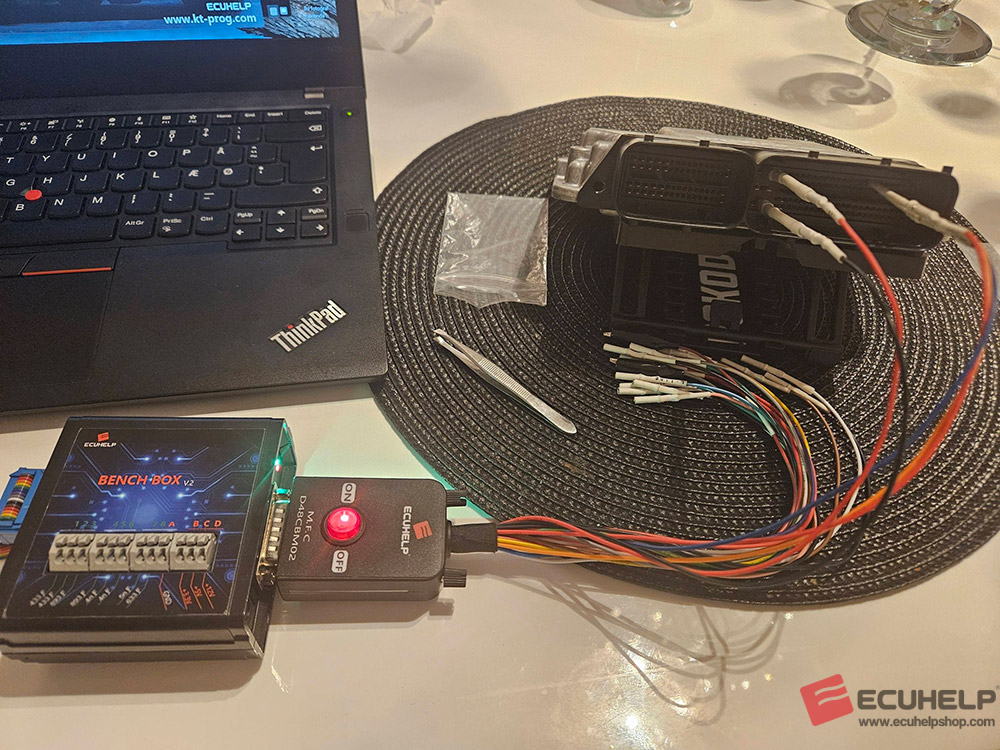

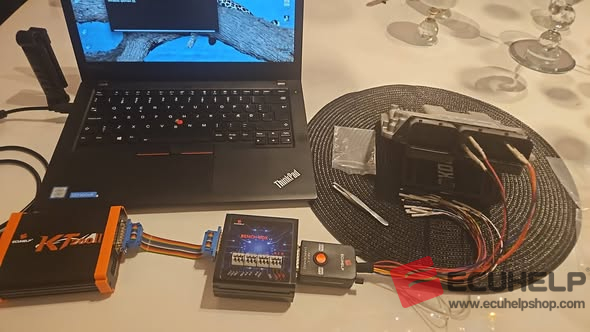

To perform the bench operation, prepare the following tools:
Multifunction cable
Bench Box V2
Wiring Connection

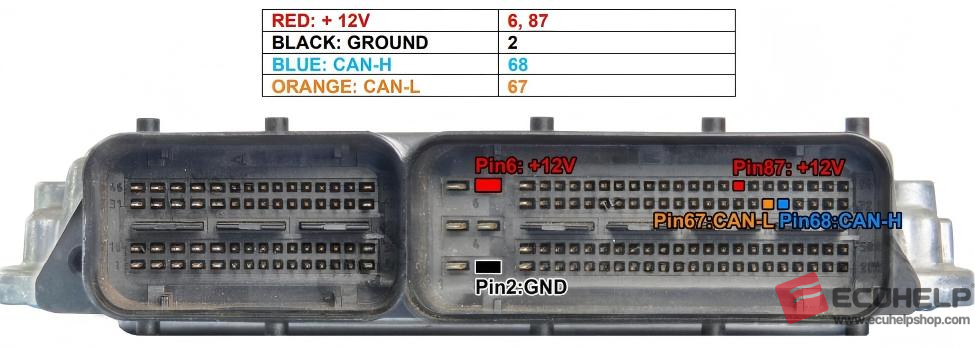

Connect the multifunction cable to the ECU according to the wiring diagram below:

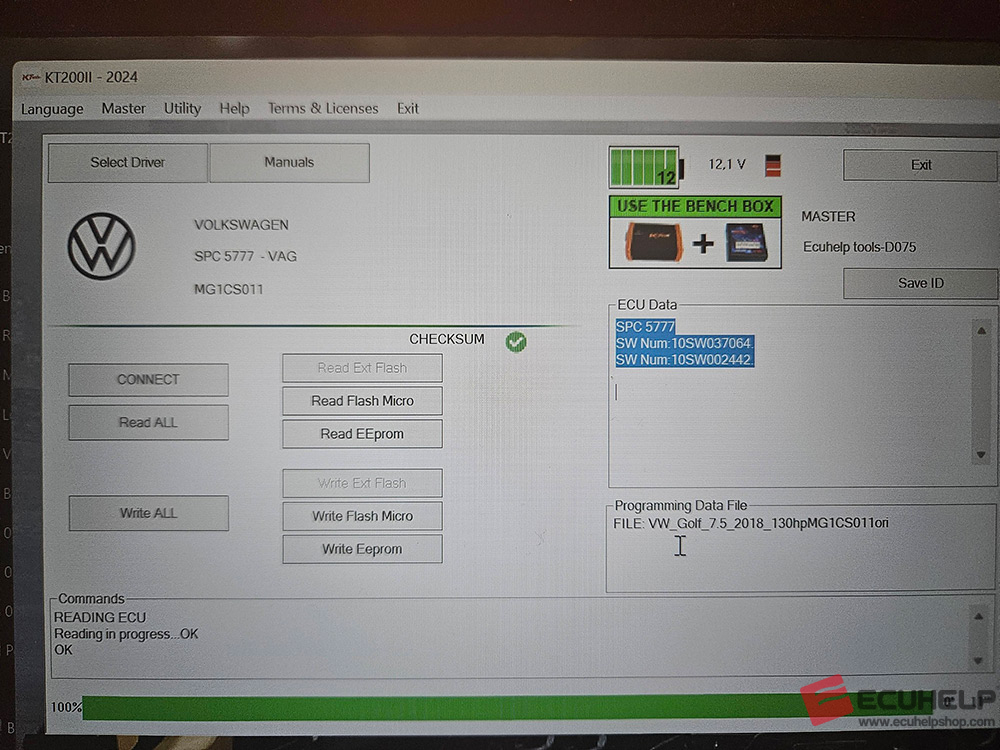

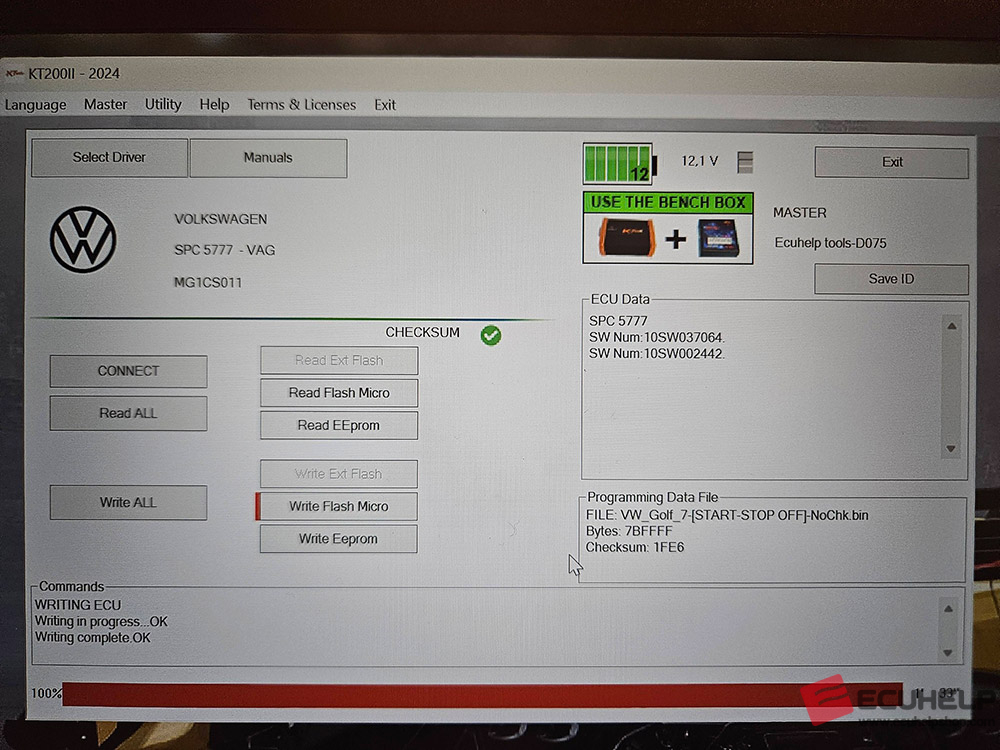

When using the ECUHELP KT200II, select the correct driver path in the software:
BENCH MODE
AUDI / VW / SEAT / SKODA
SPC5777 / TC298 – VAG
MG1CS011
Conclusion:
The ECUHELP KT200II demonstrates excellent performance when working with VW MG1CS011 ECUs on bench mode. With proper wiring and correct driver selection, users can achieve reliable read/write operations, making it a valuable tool for ECU tuning professionals.
