The ECUHELP KT200 ECU Programmer has been successfully tested for bench read and write on the Opel Meriva A equipped with the Denso MB275800 ECU.
Vehicle & ECU Information
Vehicle Model: Opel Meriva A
ECU Type: Denso MB275800
Operation Mode: Bench
Read/Write Status: OK
Checksum: Completed by Lsuite
Bench Connection Guide
To perform the operation, the ECU needs to be connected on the bench using the KT200 with the appropriate wiring.
The image below shows the correct connection method between the KT200 and the Denso MB275800 ECU:
Writing Process
Once the connection is completed, the KT200 can successfully carry out the reading and writing process on this ECU Denso MB275800.

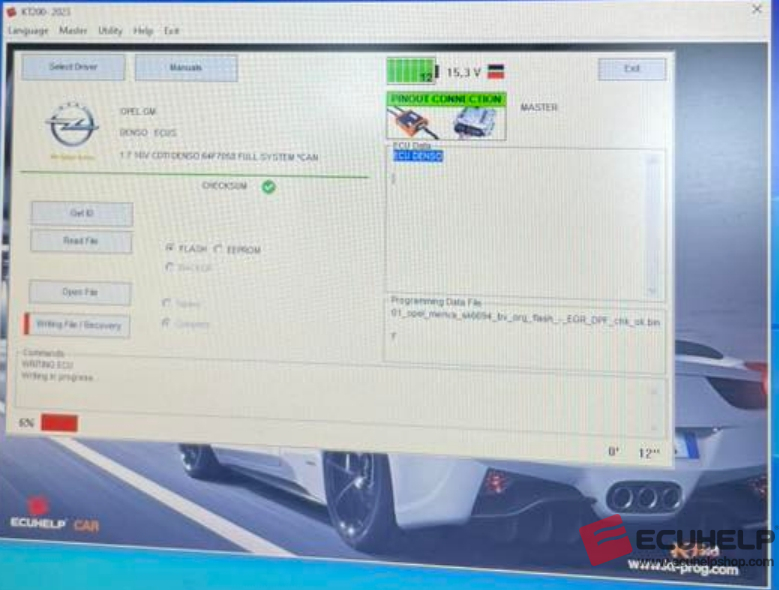

The following image demonstrates the writing procedure in progress:
