ECUHELP KT200II ECU Programmer has been successfully tested to read and write Volvo Truck ECU TRW EMS2.2 (Freescale MPC55xx Full System) using Pinout Mode.

Details:

ECU Model: TRW EMS2.2

Processor: Freescale MPC55xx

Operation Mode: Pinout Mode

Function: Full System Read/Write

Connection and Setup:

Take a look at the connection details and the reading/writing process below:

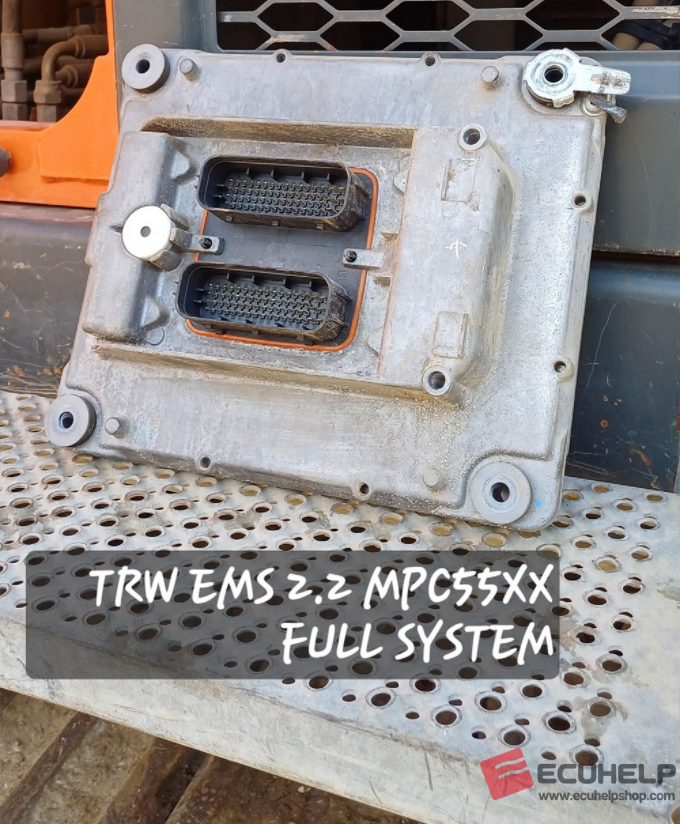

ECU Outlook – TRW EMS2.2 Freescale MPC55xx Full System:

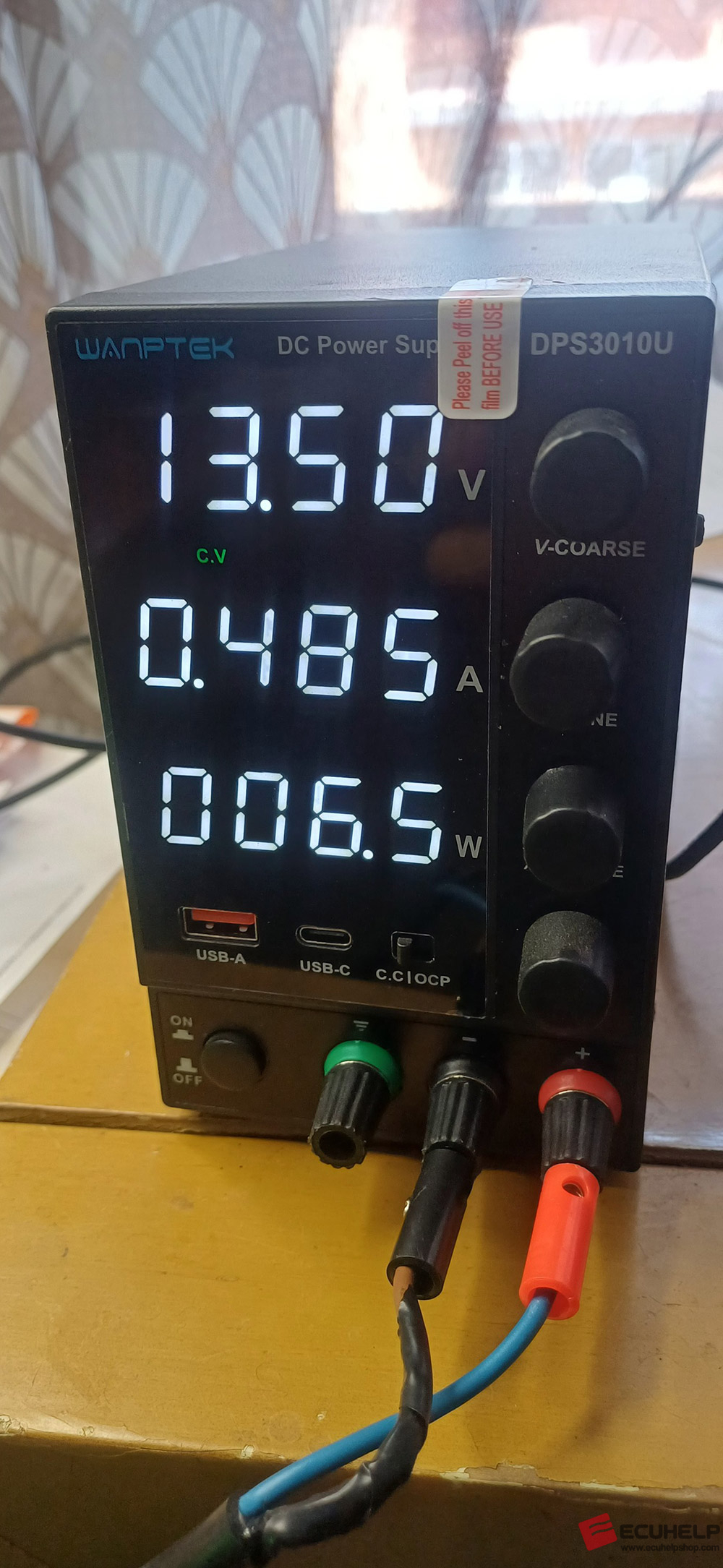

Stable Power Supply from Power Stabilizer:

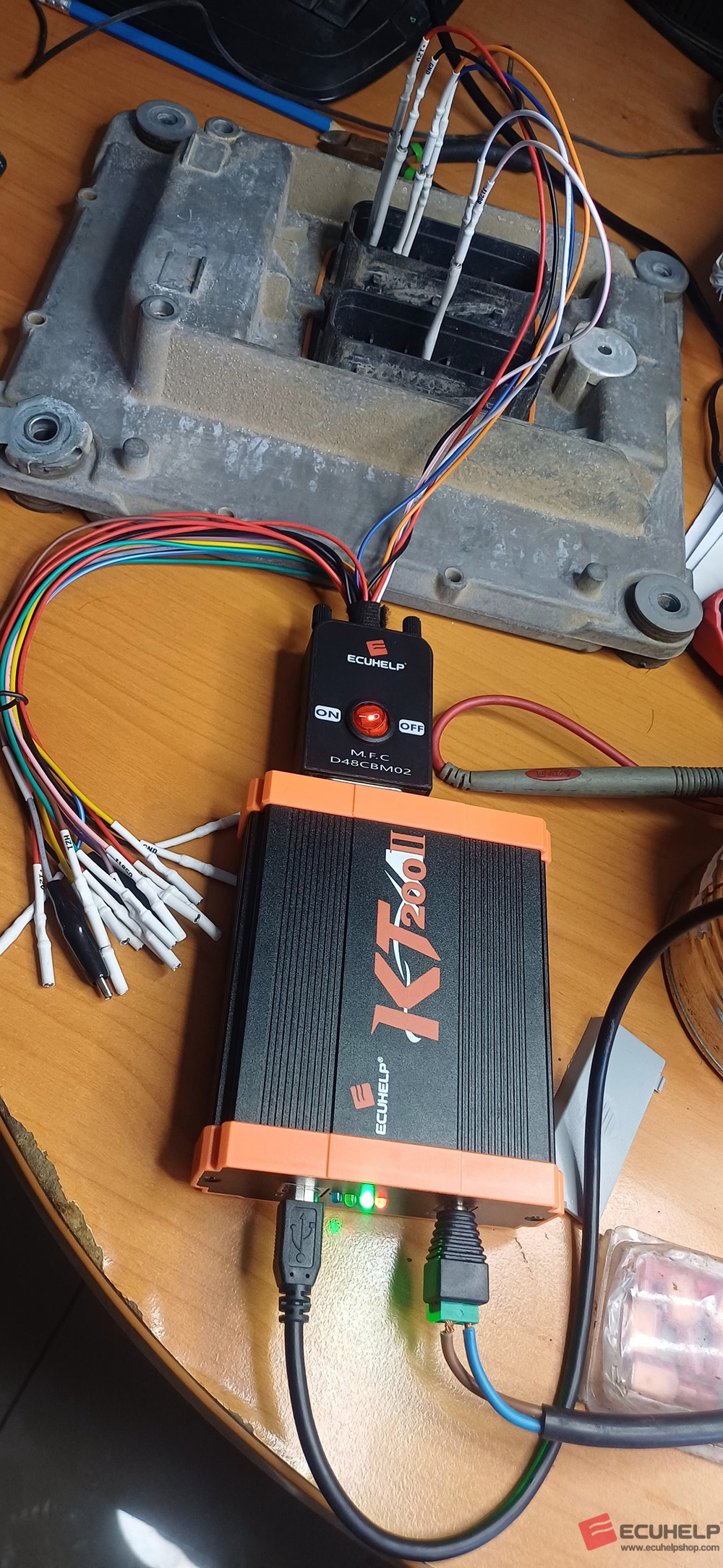

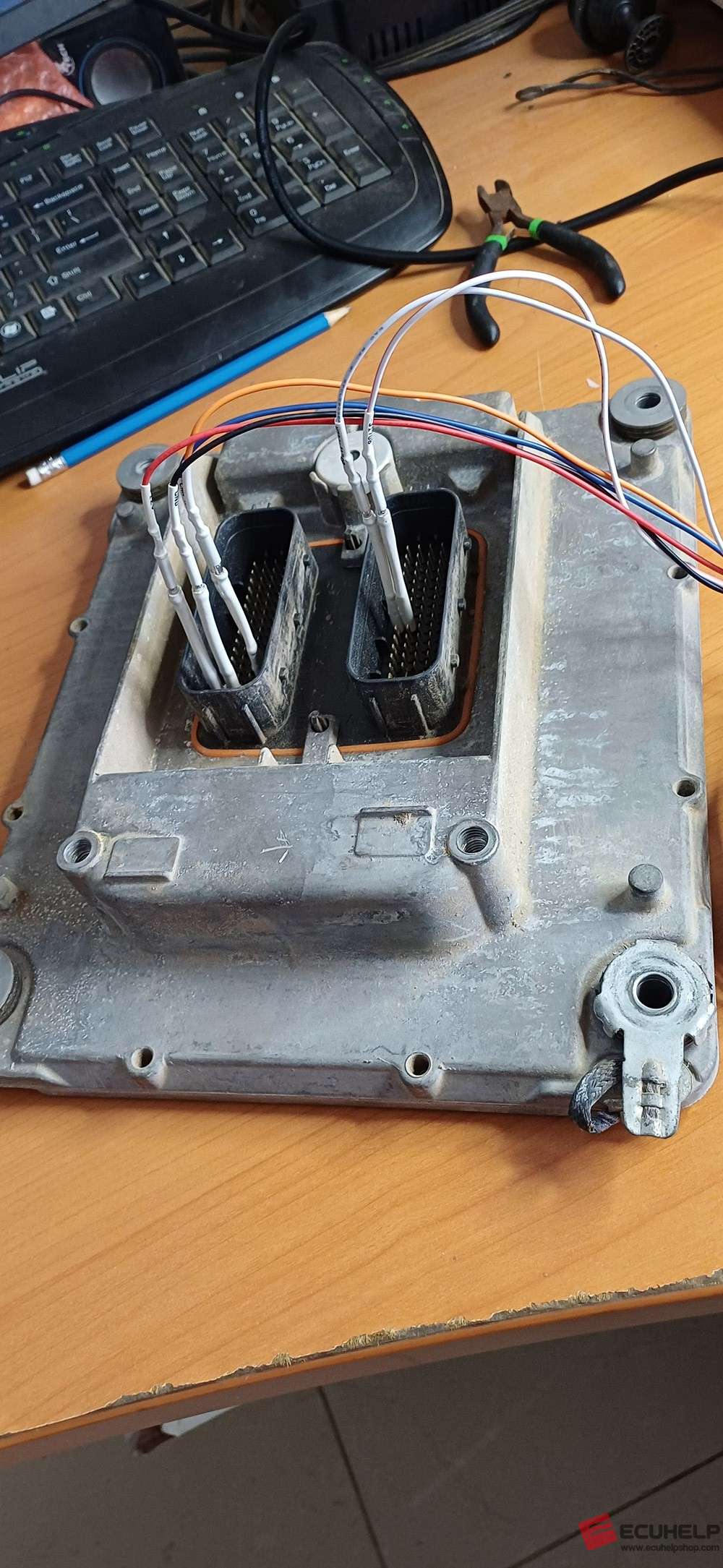

KT200II Connection to ECU TRW EMS2.2 (Pinout Mode):

Writing Process – Completed 100% Successfully:

Result:
ECUHELP KT200II once again proves its capability for professional truck ECU programming, ensuring smooth and reliable performance on Volvo TRW EMS2.2 systems.
