KT200II Read Write Case 521g Edc17cv41 TC1797 on Bench

Byadmin

Dec 26, 2025 KT200II Test Reports

ECUHELP KT200II ECU Programmer is tested to read and write Case 521g Edc17cv41 on bench.

Firstly, please prepare:
– Multifunction cable
– Bench Box V.2
– Laboratory power supply or battery

Then, connect the multi-function cable as follows. For this ECU, there are 2 different types of hardware versions, try the following 2 combinations in series. The ECU will not
suffer any damage during connection tests.

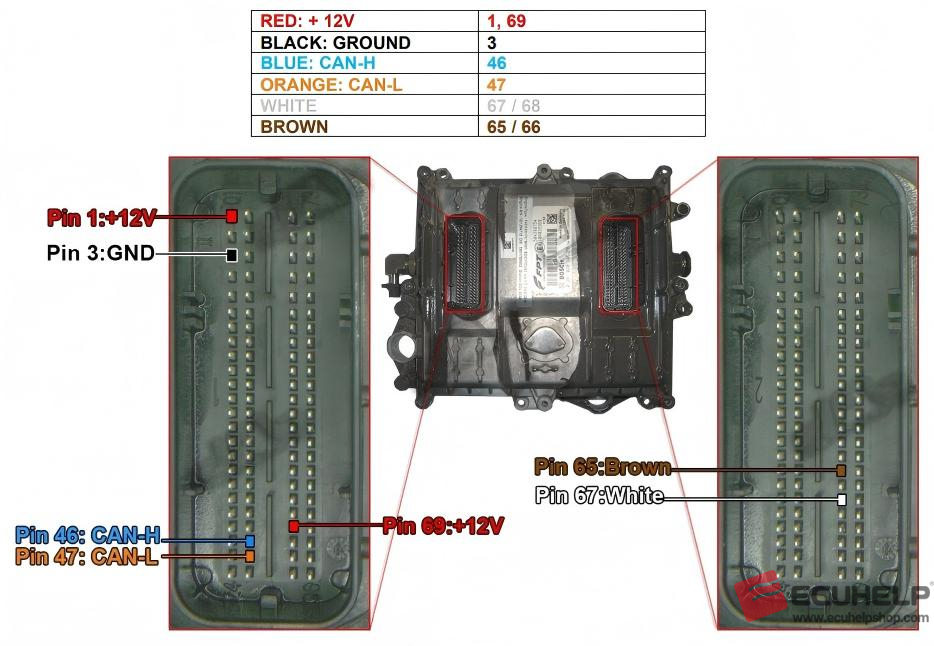

KT200II Read Write Case 521g Edc17cv41 TC1797 on Bench-01

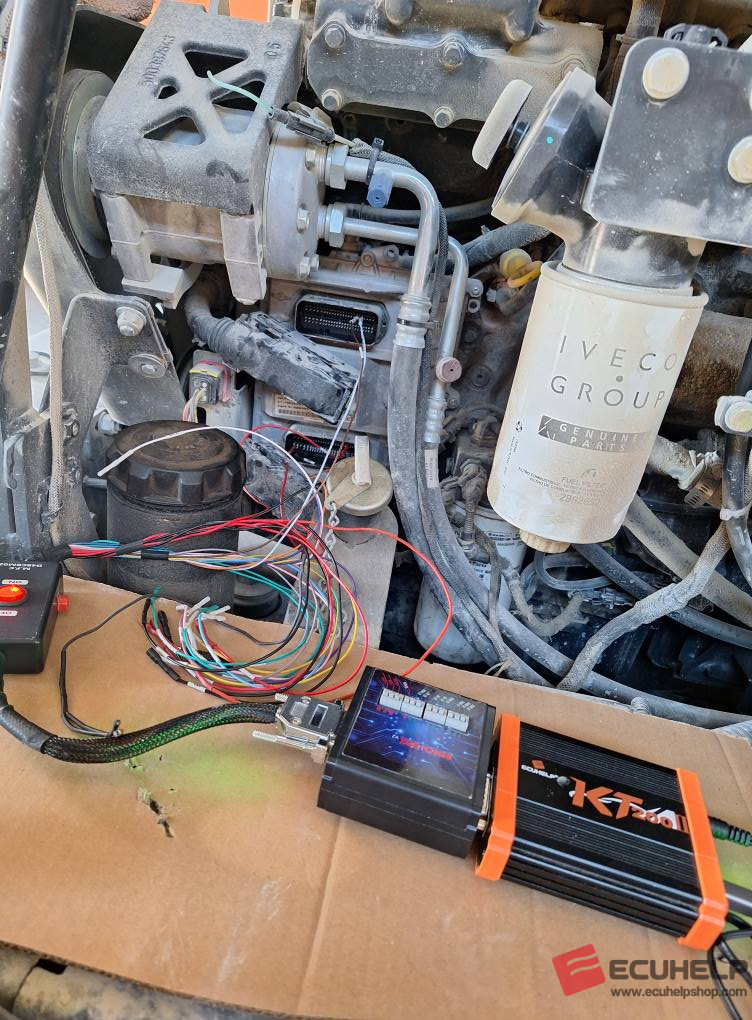

KT200II Read Write Case 521g Edc17cv41 TC1797 on Bench-02

Attention: Some ECUs enter bench mode with the pinout.

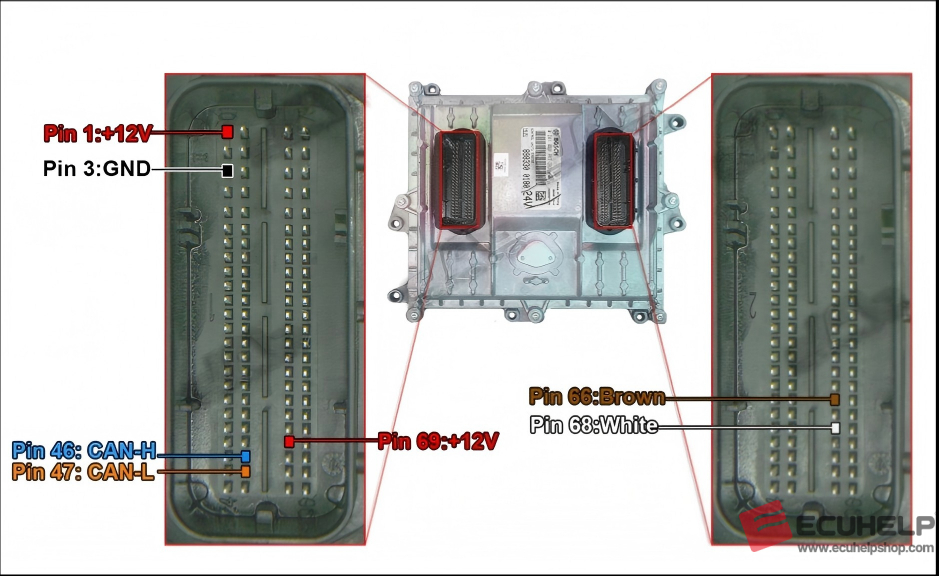

KT200II Read Write Case 521g Edc17cv41 TC1797 on Bench-03

Finally, read and write using the following driver of KT200II:
→ BENCH MODE
→ [brand]
→ TC1797 – [brand]
→ EDC17 CV41

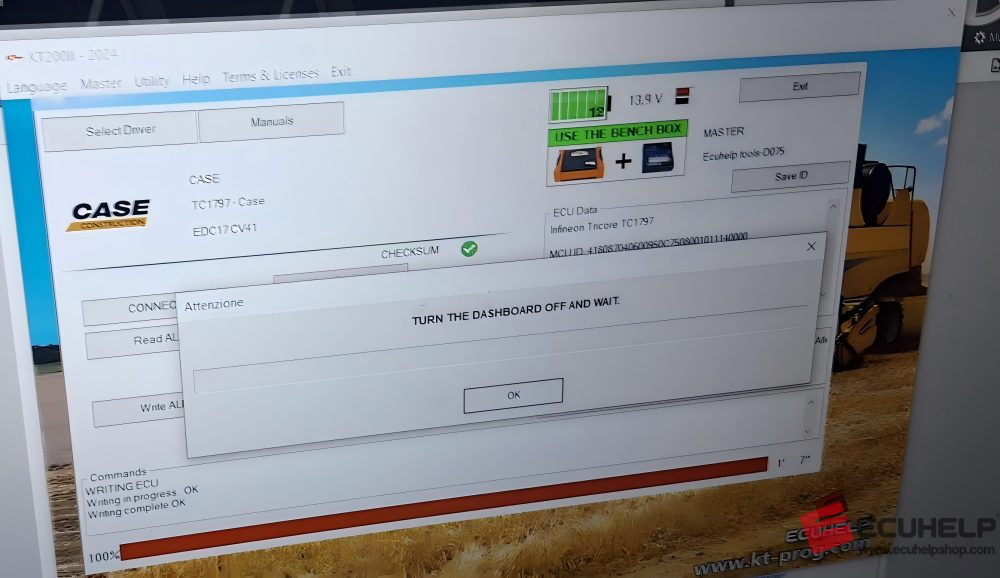

KT200II Read Write Case 521g Edc17cv41 TC1797 on Bench-04
