KT200II & KT200 Plus test report:
BMW 318D 2020
ECU: MD1CS001
Read/write on Bench

Demo Images :

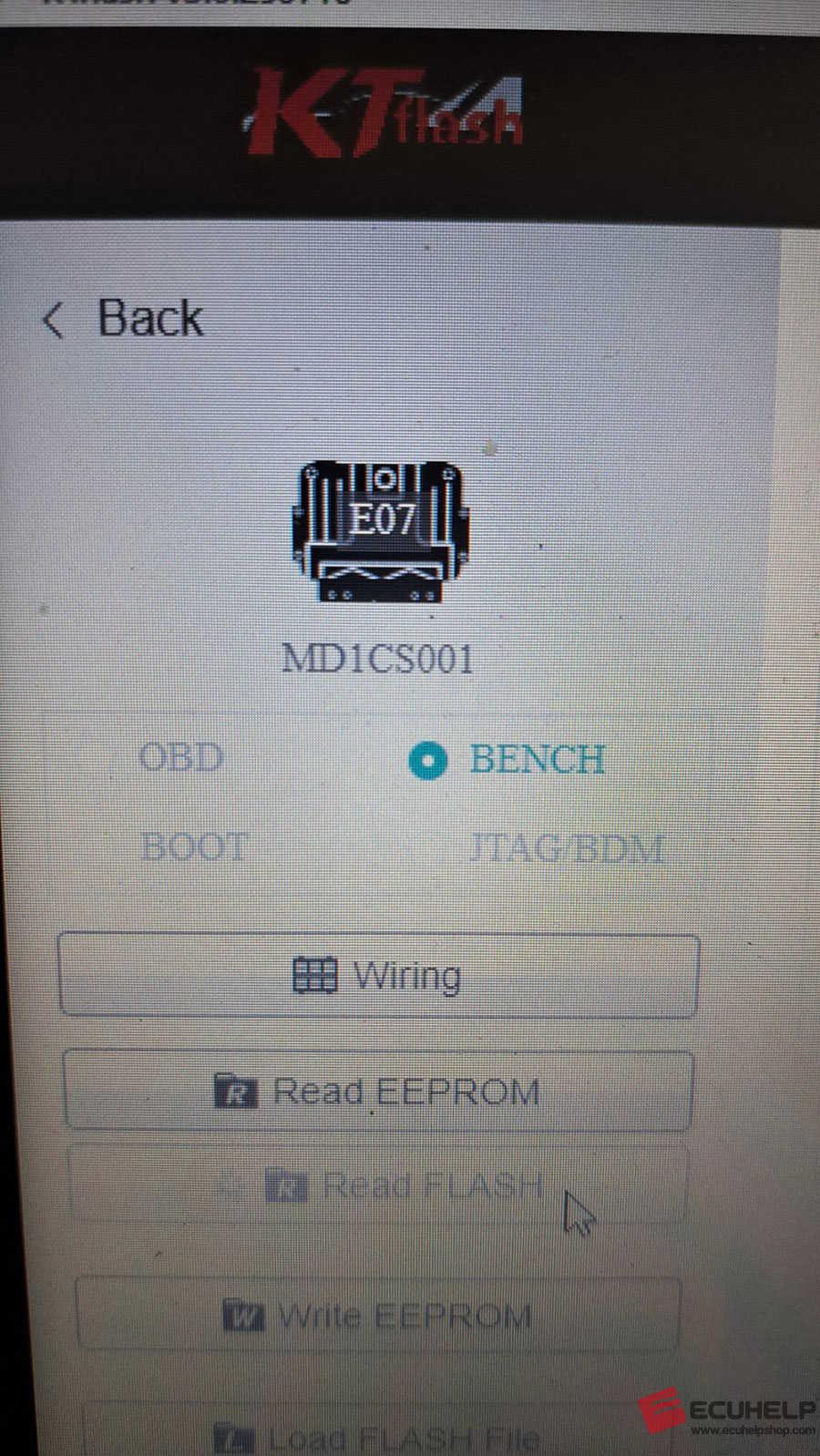

1.KT 200 Plus MD1CS001 Bench Option Menu:
Functions available: Wiring diagram inquiry, read eeprom, read flash, write eeprom, load flash file etc.

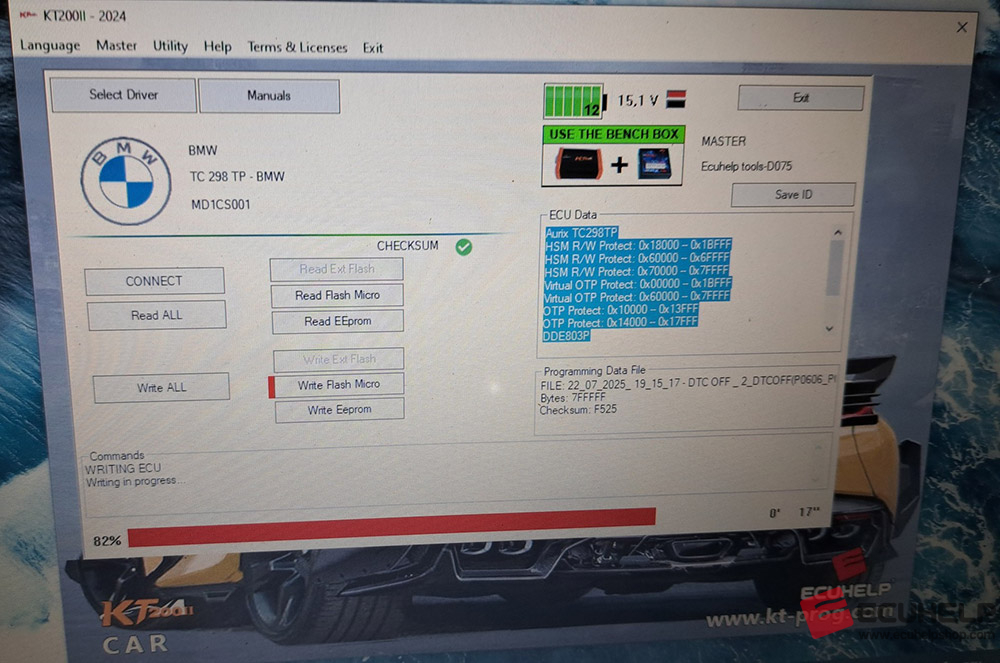

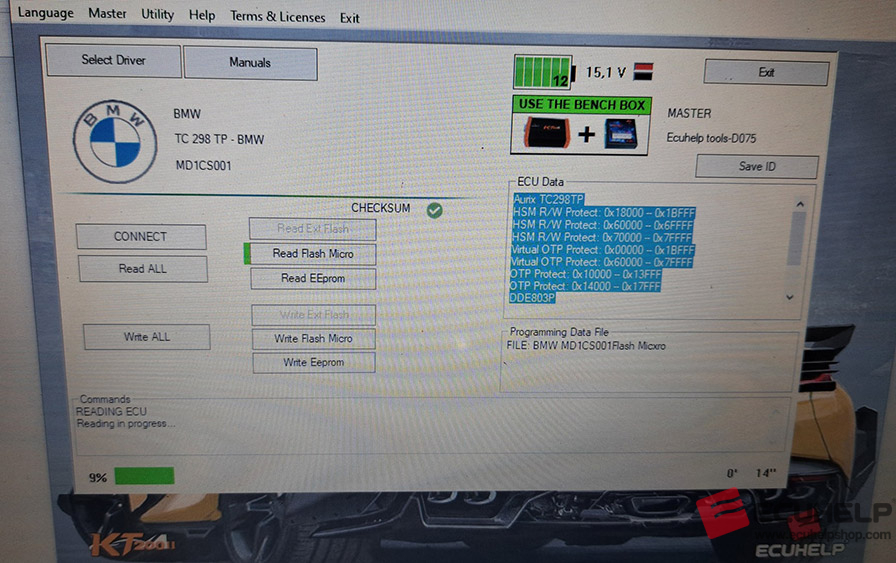

2.KT200II reads/writes MD1CS001 100% ok on bench, with power supply 15.1v.

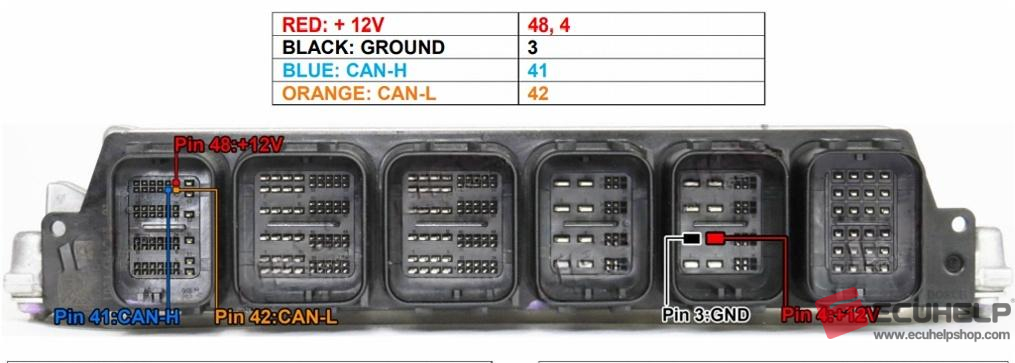

KT200II wiring diagram of BOSCH MD1CS001 [SPC5777/TC298TP] – BMW, Mini [Diesel]:

Use:
– KT200II Multifunction cable
– Bench Box V.2
– Laboratory power supply or battery

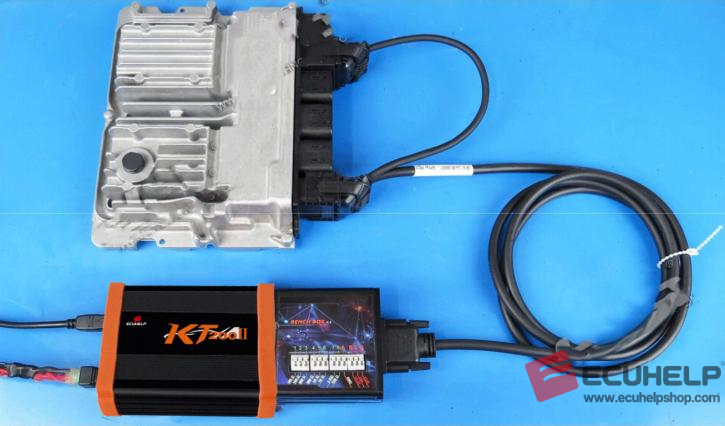

Connect the multifunction cable as follows:

To read and write use the following driver:
→ BENCH MODE
→ BMW / MINI
→ SPC5777 / TC298 – BMW
→ MD1CS001

Summary:
KT200II and KT200 Plus have been successfully tested on BMW 318D 2020 with MD1CS001 ECU Bench Mode, delivering 100% read/write performance when powered at 15.1V. Use the correct wiring diagram, KT200II Multifunction Cable, and Bench Box V.2 for stable operation.
