ECUHELP KT200II ECU Programmer has been successfully tested and confirmed to read and write the ECU EDC16U1 used in the VW Touareg 5.0 TDI V10 via Bench Mode. Both reading and writing operations are stable and reliable.

ECU Information:
Vehicle: VW Touareg
Engine: 5.0 TDI V10
ECU Type: Bosch EDC16U1

Required Tools:
ECUHELP KT200II ECU Programmer
KT200II Multifunction Cable
Bench Box

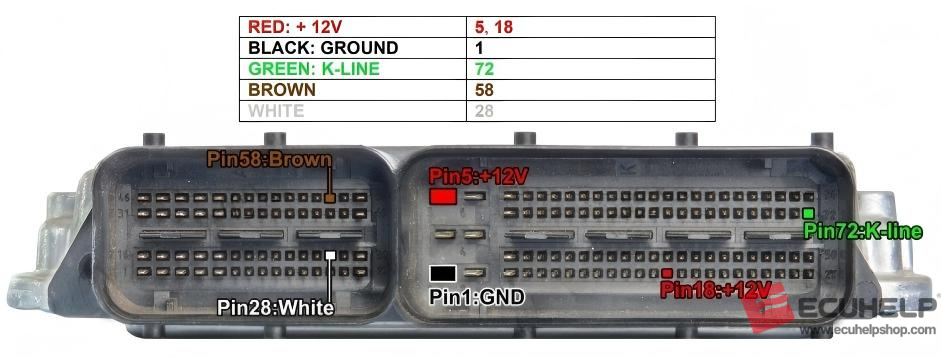

Connect the KT200II multifunction cable as follows, use the Bench Box:

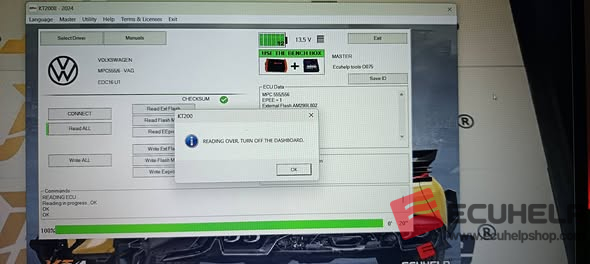

To read and write use the following driver:
→ BENCH MODE
→ [ brand ]
→ MPC555 – VAG
→ EDC16 U1

Conclusion:
The ECUHELP KT200II provides a stable and efficient solution for bench read/write operations on VW Touareg 5.0 TDI V10 EDC16U1 ECUs, making it a reliable tool for professional ECU tuning and programming work.
